Magnetic Pickup Speed Sensor MSP6720

Brief introduction：

MSP6720
magnetic pickup speed sensor Pickup Length 3.875"(98) Thread Length 3.50"(89) Lead Length 4.50"(114) Thread Size ...MORE >>

Classification：Speed Sensor

Size：10X8X6 cm

Weight：0.2kg

Price：

Introduction

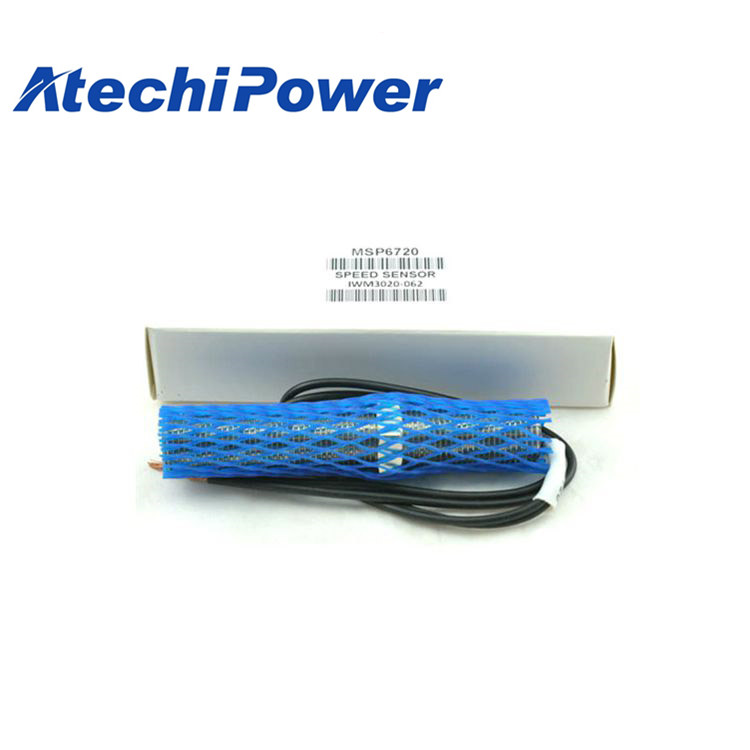

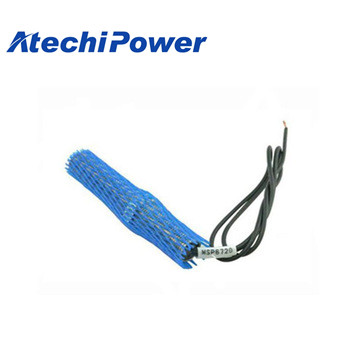

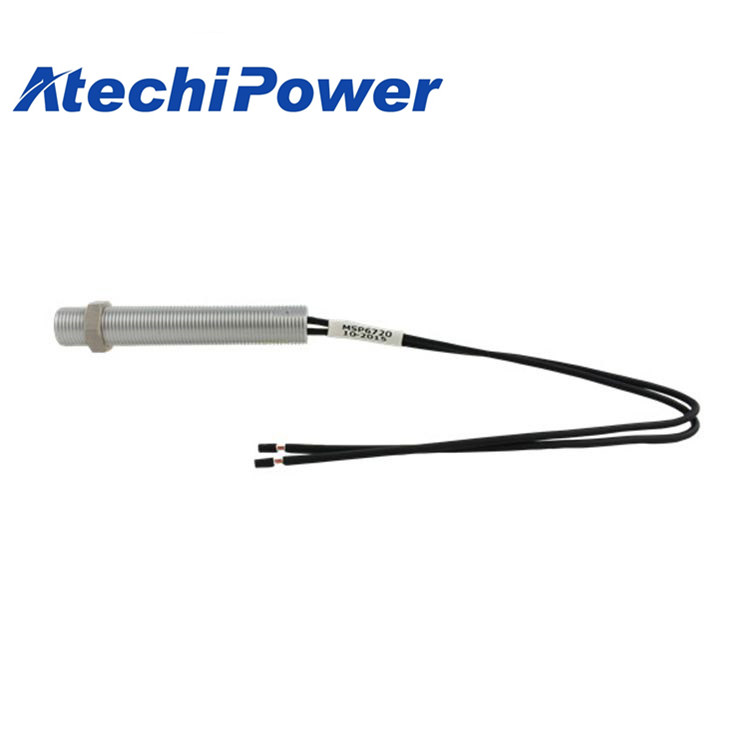

MSP6720 magnetic pickup speed sensor
Pickup Length	3.875"(98)
Thread Length	3.50"(89)
Lead Length	4.50"(114)
Thread Size	5/8-18 UNF-2A
DrilL Size	37/64

MSP6720 indicates when ring gear teeth, or other ferrous projections,pass the tip of the sensor. Electrical impulses are induced within the coil and sent to the speed control unit. The signal from the magnetic speed Sensor, teeth per second(HZ), is directly proportional to engine speed.

All products of our company are under strict inspection and testing before they come off the production line to make sure they are 100% qualified.

Magnetic Speed Pickup Sensor MSP6720
3/8 - 24 UNF Threaded		3/4 - 16 UNF Threaded
MSP6729	6' Shielded Cable / 2.5"	MSP6724	3.5" With 3" Leads / Automotive Connector
MSP6730	6' Shielded Cable / 1.5"	MSP6734	3.5" With 4" Leads
MSP6731	6' Shielded Cable / 4"	MSP6735	3.5" With 3" Leads / Packard Connector
MSP6742	1' Shielded Cable / 2.7"	MSP6744	2.29" With 8/32 Stud Terminals / 1200 Ohms
5/8 - 18 UNF Threaded
MSP674	3" Without Mating Half Connector / High Output	MSP6710	5" Mating Half Connector / Weather Boot /Military Style Connector
MSP675	3" With 7" Leads	MSP6720	4" With 6" Leads
MSP676	5" With 12" Leads	MSP6721	3" With 3" Leads / Automotive Connector
MSP677	3" Without Mating Half Connector / Military Style Connector	MSP6728	3" With 10" Leads / Packard Connector
MSP678	5" Without Mating Half Connector / Military Style Connector	MSP6732	3" With 4" Leads / Dual Output / Dual Packard Connectors
MSP679	3" Mating Half Connector / Weather Boot /Military Style Connector	MSP6743	3.75" With 8/32 Stud Terminals / 1200 Ohms
M16 x 1.5 Threaded
MSP6714	3" Without Mating Half Connector / Military Style Connector	MSP6723C	3" With 3" Leads / Automotive Connector /Mating Half Connector
MSP6715	3" With Mating Half Connector / Weather Boot /Military Style Connector	MSP6739	3" With 3" Leads / Packard Connector / With S Secondary Lock
MSP6723	3" With 3" Leads / Automotive Connector	MSP6745	6" Without Mating Half Connector / Military Style Connector
M18 x 1.5 Threaded
MSP6741	3.25" With 9" Leads / Metri-Pack Connector	MSP6746	3.4" With 16" Leads / Commercial Connector
