Brief introduction：
Generator Magnetic Pickup Speed Sensor MSP679 Generator Magnetic Pickup Speed Sensor MPU MSP679 Threaded indicates when ring gear teeth, or other ferrous p...MORE >>
Classification：Speed Sensor
Size：10X8X6 cm
Weight：0.2kg
Price：
Introduction

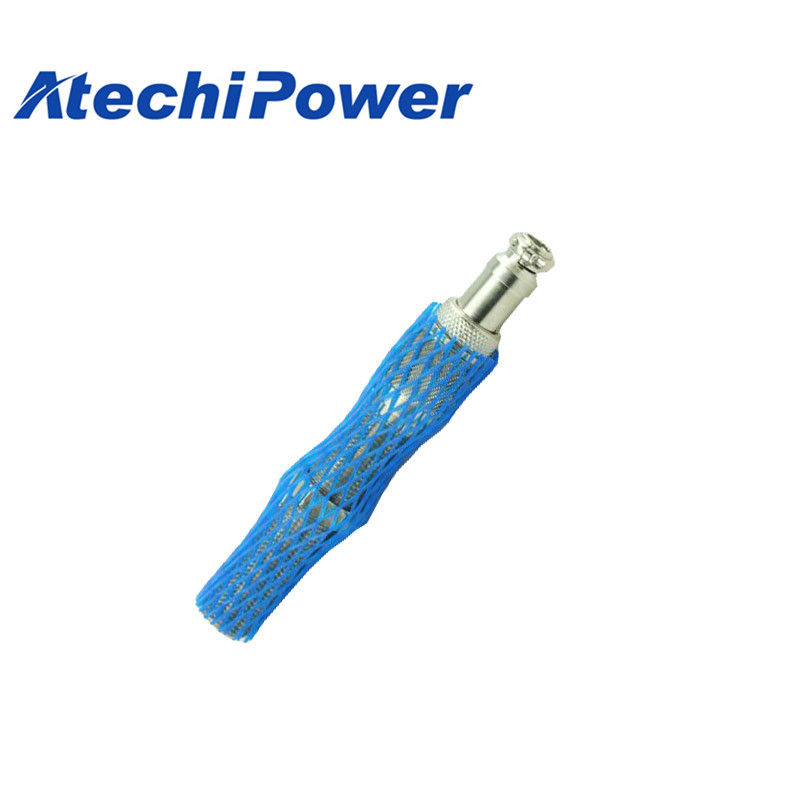

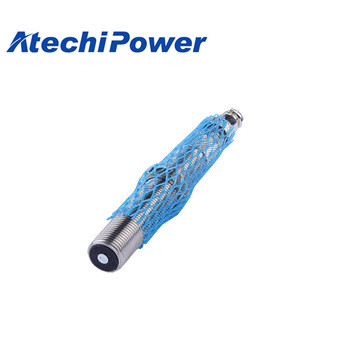

Generator Magnetic Pickup Speed Sensor MSP679
Generator Magnetic Pickup Speed Sensor MPU MSP679 Threaded indicates when ring gear teeth, or other ferrous projictions,pass the tip of the sensor.Electrical impulses are induced within the coil and sent to speed control unit.The signal from the magnetic speed sensor,teeth per second is directly proportional to engine speed.
| Diesel Engine MPU Magnetic Pickup Speed Sensor MSP679 | |||
| 3/8 - 24 UNF Threaded | 3/4 - 16 UNF Threaded | ||
| MSP6729 | 6’ Shielded Cable / 2.5” | MSP6724 | 3.5” With 3” Leads / Automotive Connector |
| MSP6730 | 6’ Shielded Cable / 1.5” | MSP6724C | 3.5” With 3” Leads / Automotive Connector Mating Half Connector |
| MSP6731 | 6’ Shielded Cable / 4” | MSP6734 | 3.5” With 4” Leads |
| MSP6742 | 1’ Shielded Cable / 2.7” | MSP6735 | 3.5” With 3” Leads / Packard Connector |
| MSP6744 | 2.29” With 8/32 Stud Terminals / 1200 Ohms | ||
| 5/8 - 18 UNF Threaded | |||

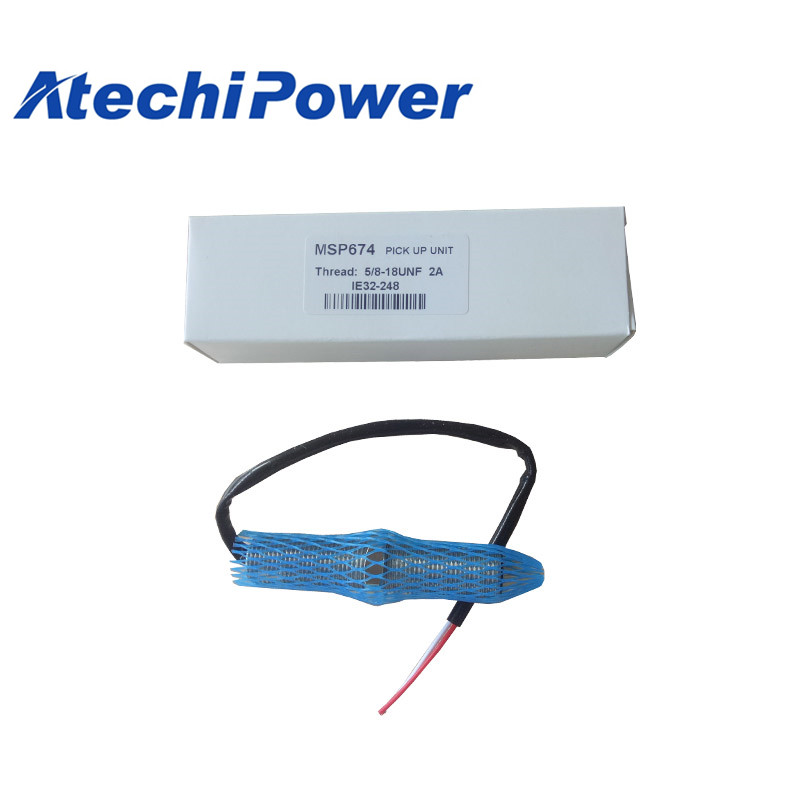

| MSP674 | 3” Without Mating Half Connector / High Output | MSP6720 | 4” With 6” Leads |
| MSP675 | 3” With 7” Leads | MSP6721 | 3” With 3” Leads / Automotive Connector |
| MSP676 | 5” With 12” Leads | MSP6721C | 3” With 3” Leads / Automotive Connector with Mating Half Connector |
| MSP677 | 3” Without Mating Half Connector / Military Style Connector | MSP6728 | 3” With 10” Leads / Packard Connector |
| MSP678 | 5” Without Mating Half Connector / Military Style Connector | MSP6728C | 3” With 10” Leads / Packard Connector with Mating Half Connector |
| MSP679 | 3” Mating Half Connector / Weather Boot /Military Style Connector | MSP6732 | 3” With 4” Leads / Dual Output / Dual Packard Connectors |
| MSP6710 | 5” Mating Half Connector / Weather Boot /Military Style Connector | MSP6732C | 3” With 4” Leads / Dual Output / Dual Packard Connectors with Mating Half Connector |
| MSP6719 | 2.375” With 12” Leads | MSP6743 | 3.75” With 8/32 Stud Terminals / 1200 Ohms |
| M16 x 1.5 Threaded | |||
| MSP6714 | 3” Without Mating Half Connector / Military Style Connector | MSP6723C | 3” With 3” Leads / Automotive Connector /Mating Half Connector |
| MSP6715 | 3” With Mating Half Connector / Weather Boot /Military Style Connector | MSP6739 | 3” With 3” Leads / Packard Connector / With Secondary Lock |
| MSP6723 | 3” With 3” Leads / Automotive Connector | MSP6745 | 6” Without Mating Half Connector / Military Style Connector |
| M18 x 1.5 Threaded | |||
| MSP6741 |
3.25” With 9” Leads / Metri-Pack Connector |
MSP6746 | 3.4” With 16” Leads / Commercial Connector |
