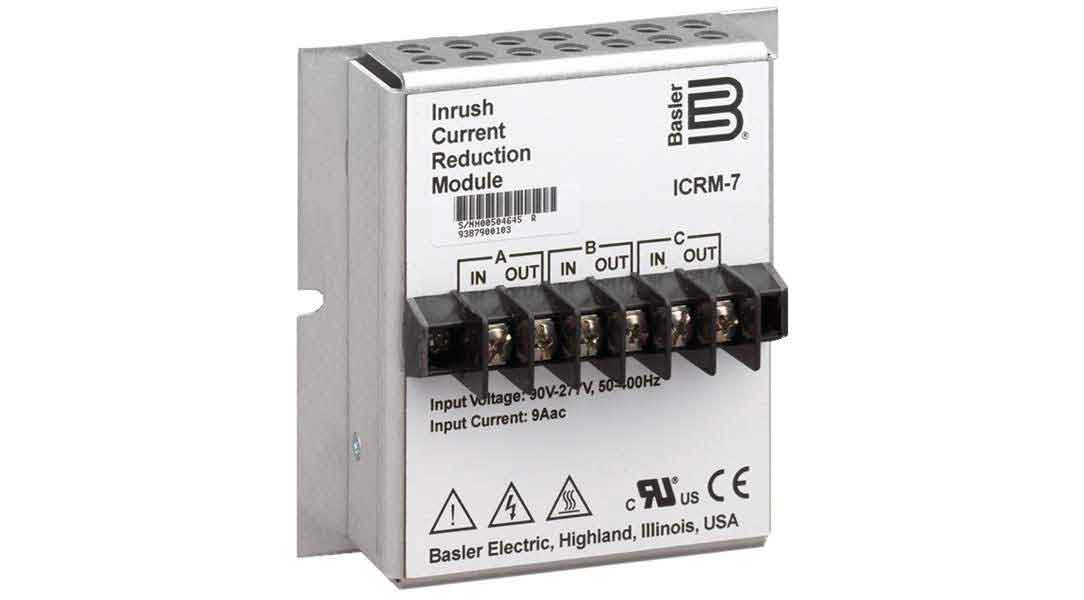

ICRM-7, ICRM-15, Inrush Current Reduction Module

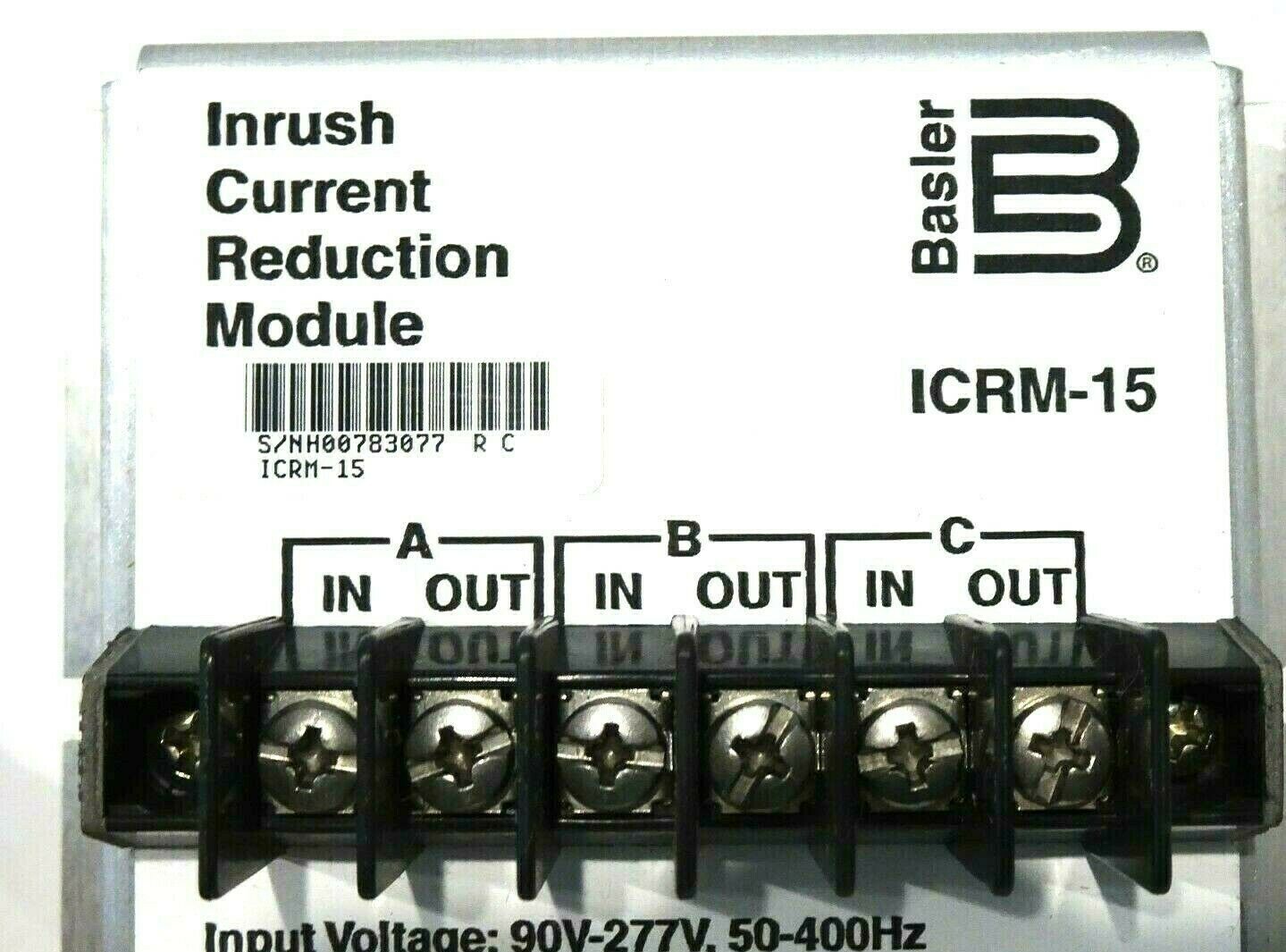

Product Name: Basler 9387900104 ICRM-15 Inrush Current Reduction Module
Brand: Basler
Product Code: 9387900104 ICRM-15
Inrush Current Reduction Module

These modules are designed to protect PWM-type voltage regulators from high inrush currents when powered from an independent power source other than the generator or the generator's PMG.

APPLICATION Applications where a voltage regulator is powered by a permanent magnet generator (PMG), auxiliary winding, or generator output (shunt fed) usually do not require the protection of an ICRM. These sources usually have a higher source impedance which inherently minimizes inrush current. Also, these sources are typically connected directly to the voltage regulator with no interposing relays, contactors, or switches. If this is the case, then no inrush occurs since the source voltage ramps up to its rated value. However, if rated or near rated voltage is applied to the voltage regulator, then some amount of inrush current is expected and an ICRM should be considered. Typically, voltage regulators in these applications receive power from a station service bus that is switched by a relay or contactor. Applications where a PWM type voltage regulator is powered by a low-impedance source need an ICRM to minimize the amount of inrush current. To summarize, if the voltage that powers the voltage regulator ramps up to nominal as the generator comes up to rated speed, then an ICRM is not needed. If this is not the case, an ICRM should be used. If you are unsure whether your application requires an ICRM, contact Basler Electric Technical Sales Support for assistance.ICRM Versions Two versions of the ICRM are available. Each version is uniquely suited to protect a specific family of Basler Electric products. Table 1 lists each ICRM model, its part number, and the compatible products.
