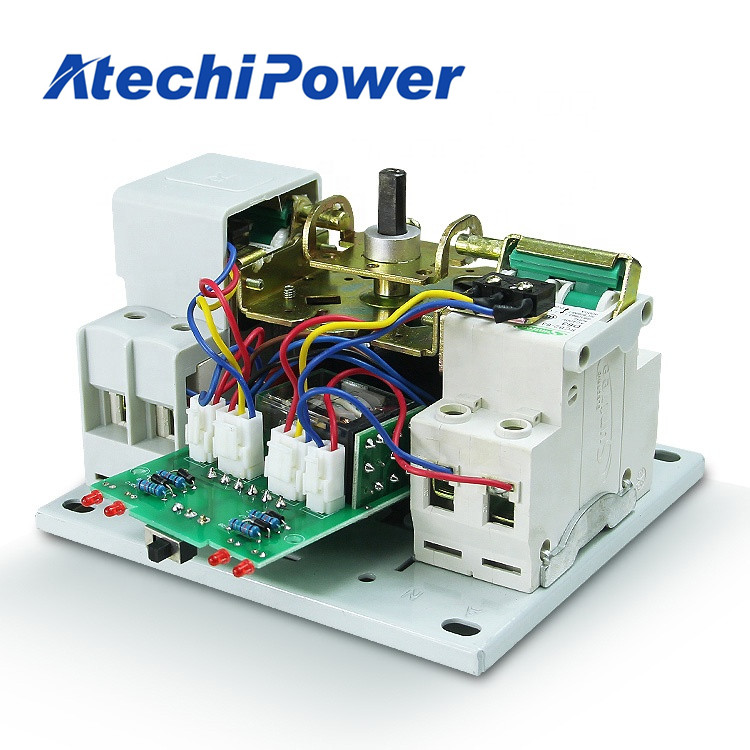

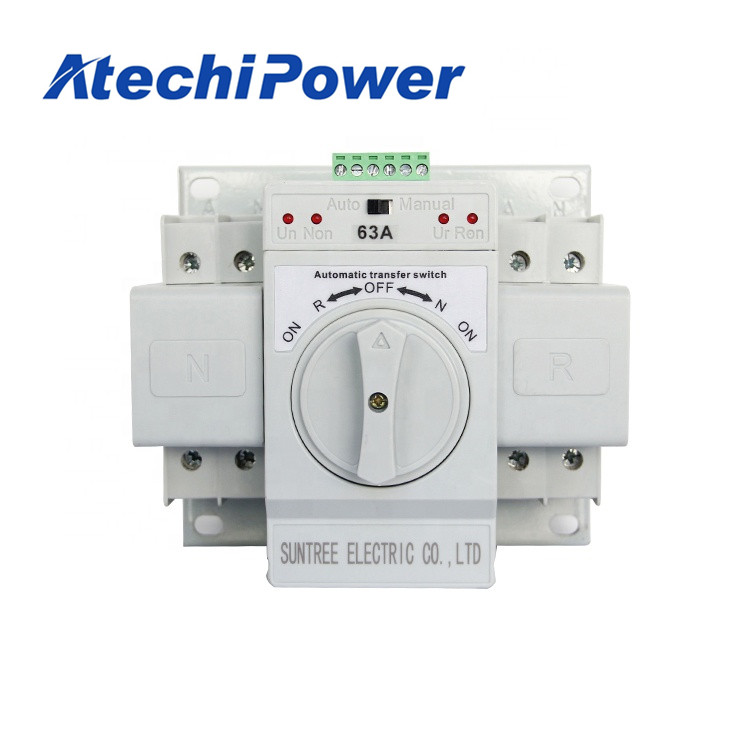

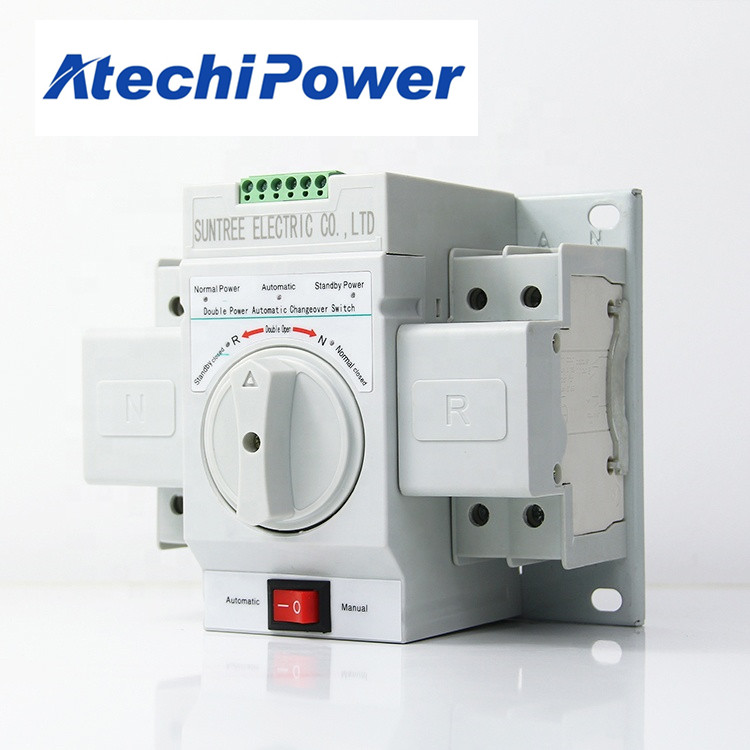

SQ3 Series ATS Manual Transfer Switch Automatic Changeover Switch ATS Controller

Brief introduction：

With the smallest volume among the similar products, it also has the functions like the fire control and power generation, and it is specially usded in the impo...MORE >>

Classification：Genset Assemble Parts

Size：40X15X15 cm

Weight：3.5kg

Price：

Contact us

Introduction

With the smallest volume among the similar products, it also has the functions like the fire control and power generation, and it is specially usded in the important power supply locations where the power failure is not allowed.


Product Parameters
Type SQ3W
Specification current Ie(A) 6/10/16/20/25/32/40/50/63
Rated operating voltage, Ue (V) AC230V/AC400V
Rated insulating voltage Ui (V) AC 690V
Rated impulse withstand voltage (KV) 4KV
Rated short circuit making capacity Icm 6KA
Rated short circuit breaking capacity Icn 4.5KA
Service life 5000 times
Electric equipment grade CB Class
Controller Type A(basic type)
Rated control supply voltage,Us(V) 230V 50Hz
Operating transfer time (no time delay) ≤3s

            SQ3-63 2P, 63A, 230V
            SQ3-63 4P, 63A, 400/230V
            SQ5-1000 4P, 1000A, 400/230V
            SQ5-125 4P, 100A, 400/230V
            SQ5-1250 4P, 1250A, 400/230V
            SQ5-160 4P, 160A, 400/230V
            SQ5-1600 4P, 1600A, 400/230V
            SQ5-250 4P , 250A, 400/230V
            SQ5-400 4P , 400A, 400/230V
            SQ5-630 4P , 630A, 400/230V
