Hz Panel Meter

Brief introduction：

Voltage METER Analog meter is kind of protection equipment for the generators which is conected to the controller to protection the generator operation in norma...MORE >>

Classification：Genset Assemble Parts

Size：10X8X6 cm

Weight：0.2kg

Price：

Contact us

Introduction

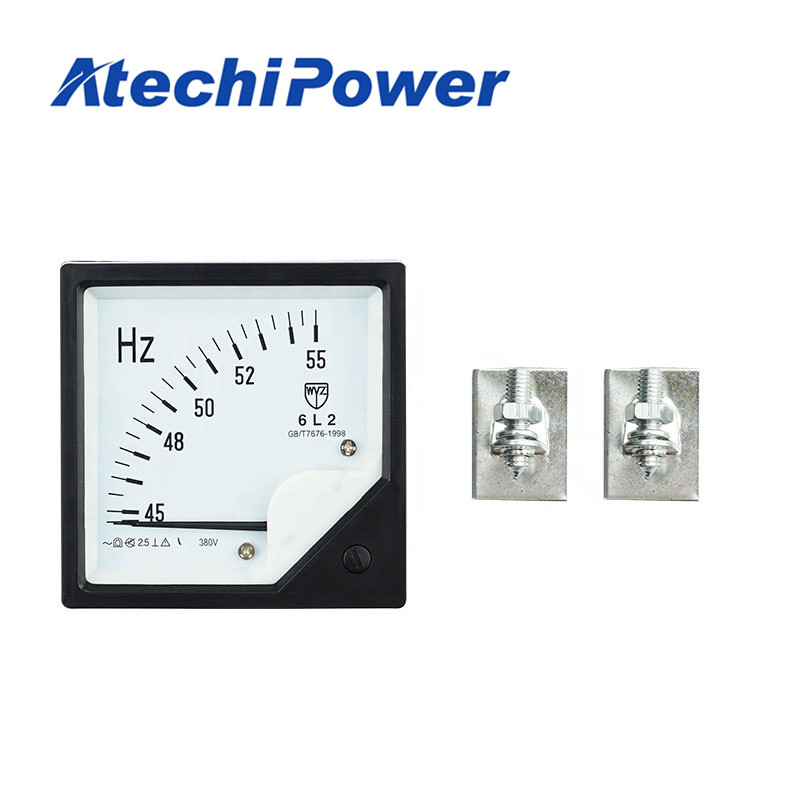

Analog HZ METER

Analog meter is kind of protection equipment for the generators which is conected to the controller to protection the generator operation in normal type. When the generator in unnormal level, the sensor will send the signal to the controller then the controller will send warning to make sure you will find the problem was.



Model Dimensions (mm) Hole size (mm) Indicator Range Rated voltage Rated voltage Accuracy class Adapt to temperature
91L4 V 45*45*36 φ38 0-450V 0-450V   2.5 -5℃--50℃
MU-45V 58.5*53*35 φ45 0-450V 0-450V   2.5 -5℃--50℃
85L1 V   φ49 0-500V 0-500V   2.5 -5℃--50℃
69L13 V 80*66*58 φ60 0-500V 0-500V   2.5 -5℃--50℃
99T1 V 48*48*58 45*45 0-500V 0-500V   1.5 -5℃--50℃
99T1 A 48*48*58 45*45 0-200A   AC≤5A 2.5 -5℃--50℃
99T1 HZ 48*48*58 45*45 45-65HZ 0-400V   2.5 -5℃--50℃
6L2 V 80*80*68 76*76 0-500V 0-500V   1.5 -5℃--50℃
6L2 A 80*80*68 76*76 0-1000V   AC≤5A 2.5 -5℃--50℃
6L2 HZ 80*80*68 76*76 45-65HZ 0-400V   2.5 -5℃--50℃
72L V 72*72*59 66*66 0-500V 0-500V   1.5 -5℃--50℃
72L A 72*72*59 66*66 0-1000V   AC≤5A 2.5 -5℃--50℃
72L HZ 72*72*59 66*66 45-65HZ 0-400V   2.5 -5℃--50℃
