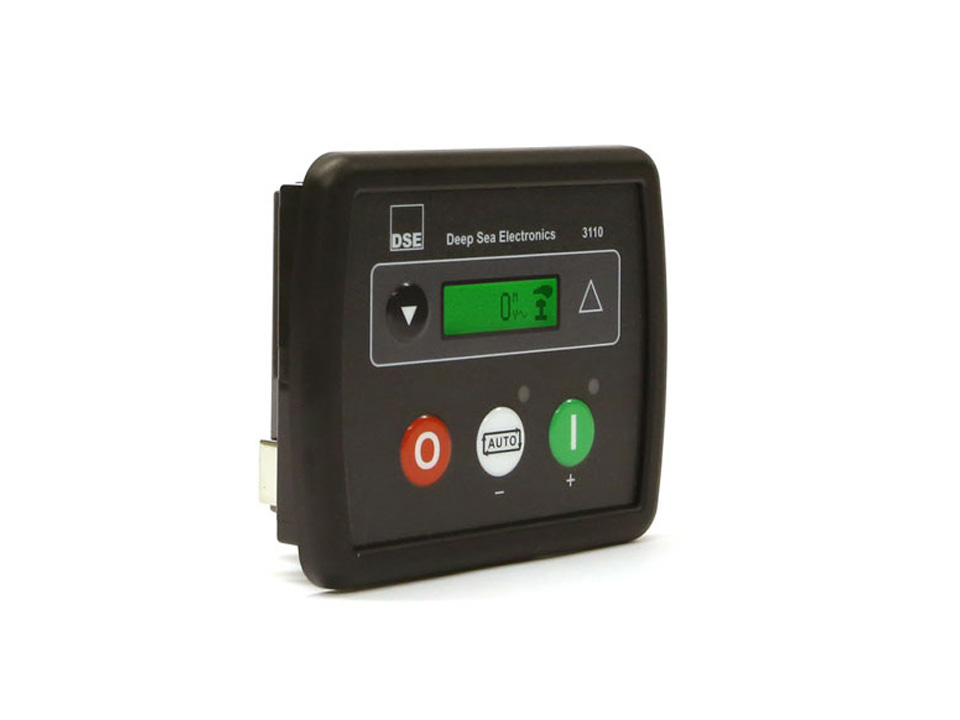

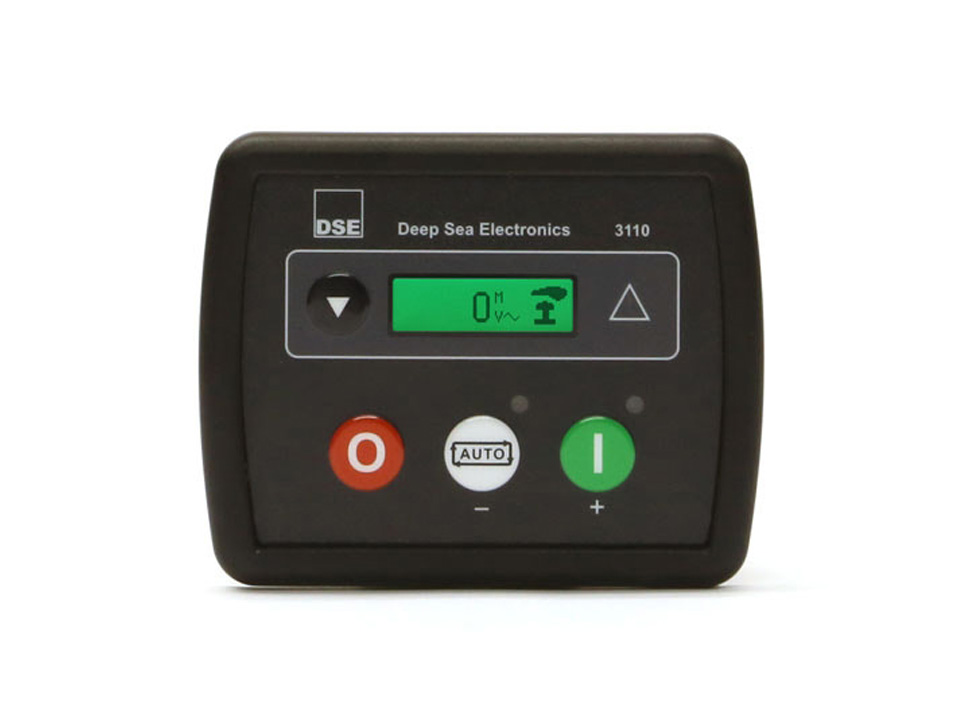

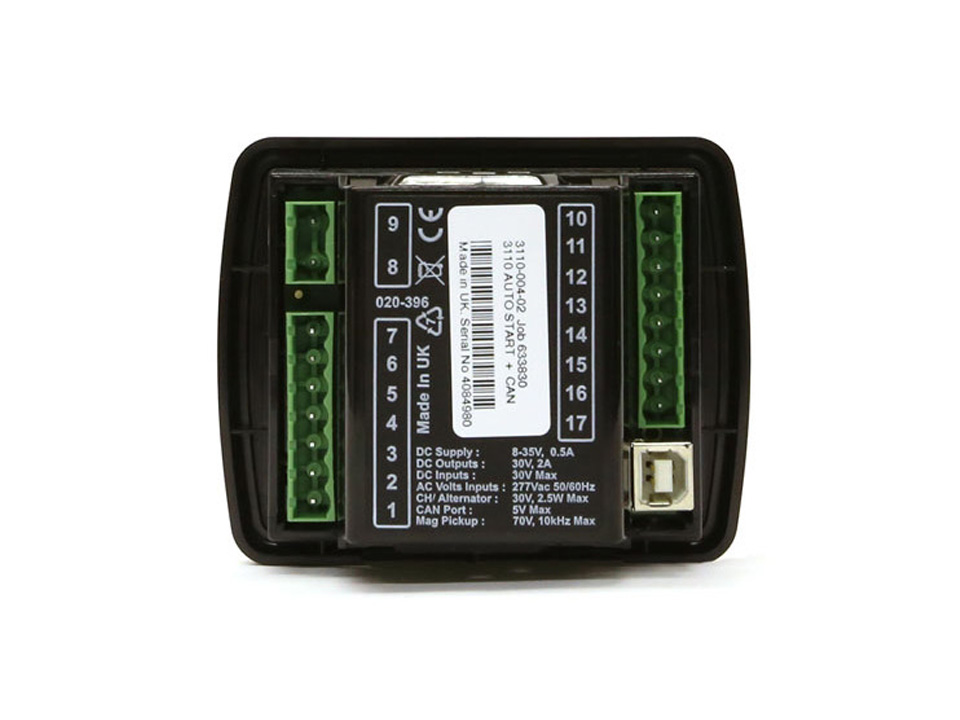

Deep Sea Electronics DSE3110 Manual & Auto Start Control Module

The DSE3110 is an outstanding compact control module that provides a comprehensive range of features for single-set applications. The controller can be used in manual or auto start mode.
OVERALL SIZE
98 mm x 79 mm x 40 mm (3.9” x 3.1” x 1.6”)

PANEL CUTOUT SIZE
80 mm x 68 mm (3.1 " x 2.7")

MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)

WEIGHT
0.16kg



KEY Features and Benefits

• Standard engine and electronic CANbus variants.
• Instant integration with both standard and modern electronically controlled engines.
• Configurable inputs/outputs (6 digital inputs/4 outputs – 2 outputs configurable on magnetic pick-up variant).
• Provides multiple installation options.
• Remote start input.
• Provides a simple connection to operate the generator from a remote location.
• Comprehensive display parameters.
• Provides instant notification of generator voltage, generator frequency, battery voltage, engine speed and run hours via one button navigation.
• Engine pre-heat.
• Warms the engine to a safe temperature at start-up to increase engine life.
• Configurable timers & alarms.
• Provides excellent system flexibility.
• Large back-lit icon LCD display.
• Displays information to the operator in a clear and concise format.
• DSE Configuration Suite PC Software.
• Provides complete user-friendly configuration and easy-to-use high-level system control & monitoring.



SPECIFICATION

DC SUPPLY

CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous
CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries
CHARGE FAIL/ EXCITATION
8 V to 35 V fixed power source 2.5 W
NOMINAL STANDBY CURRENT
23 mA at 12 V, 18 mA at 24 V
MAXIMUM OPERATING CURRENT
35 mA at 12 V, 30 mA at 24 V
OUTPUTS
OUTPUT A (FUEL)
2 A DC at supply voltage

OUTPUT B (START)
2 A DC at supply voltage

AUXILIARY OUTPUTS C & D
2 A DC at supply voltage

GENERATOR

VOLTAGE RANGE
15 V - 333 V AC (L-N)

FREQUENCY RANGE
3.5 Hz to 75 Hz

MAGNETIC PICK-UP

VOLTAGE RANGE
+/- 0.5 V to 70 V

FREQUENCY RANGE
10,000 Hz (max)
