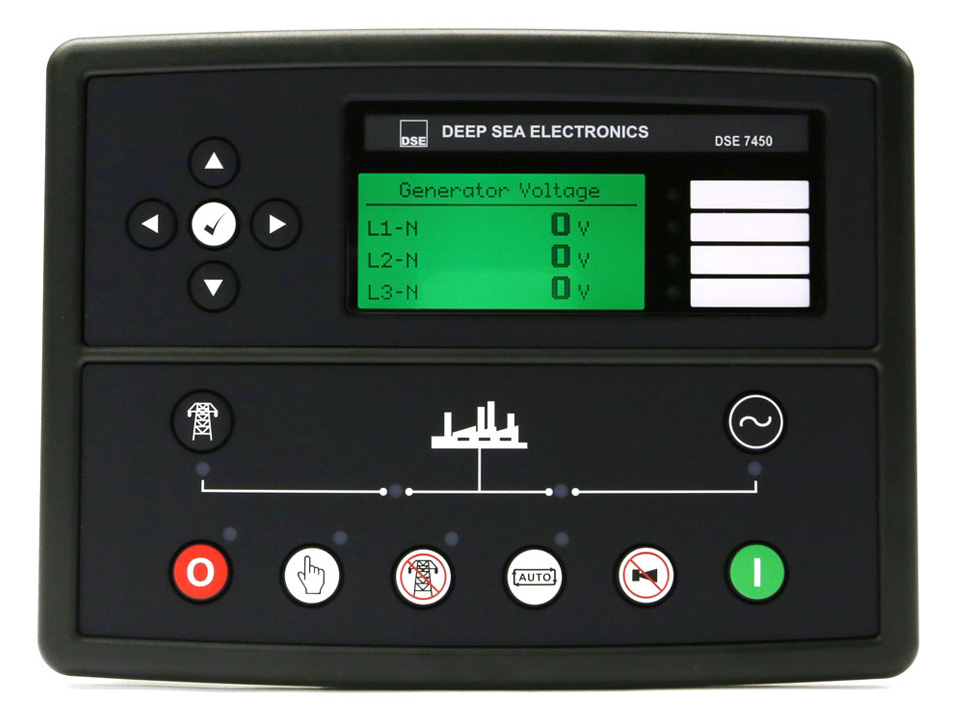

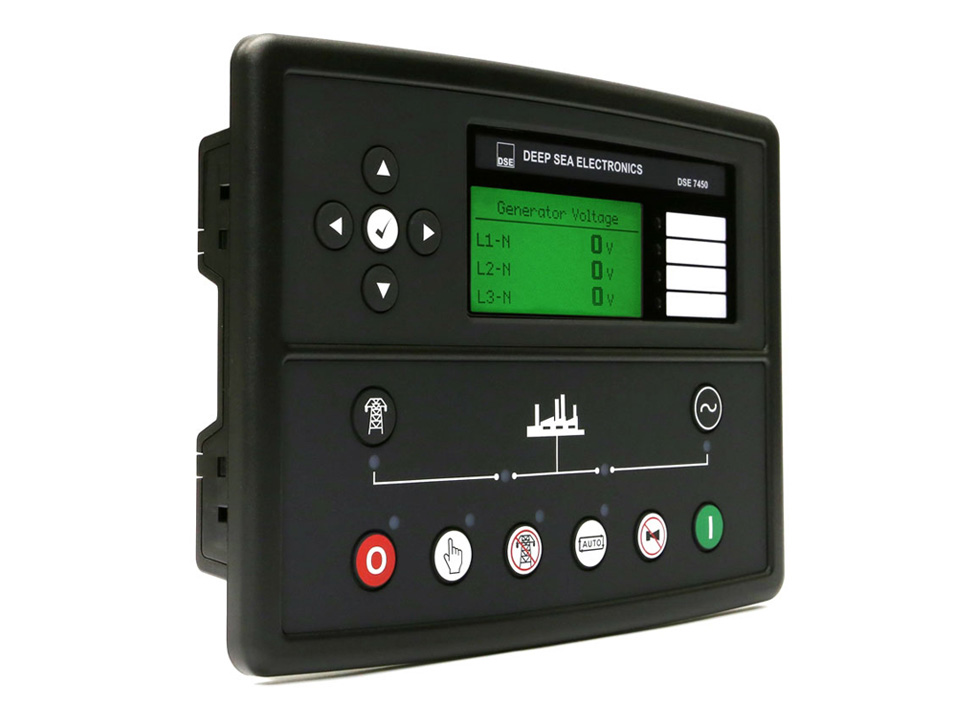

Deep Sea Electronics DSE7450 DC Generator Control Module

The DSE7450 DC Generator Control Module has been expertly designed to supply a load and charge the batteries on DC generators that are being used in standalone remote locations.

The module has the functionality to handle a wide range of challenging applications. Its in-built PLC editor and high number of monitoring points make it the ideal solution for all DC generator applications.

OVERALL SIZE
240 mm x 172 mm x 57 mm (9.4” x 6.8” x 2.2”)

PANEL CUTOUT SIZE
220 mm x 160 mm (8.7″ x 6.3″)

MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)

WEIGHT
0.92kg

Key Features and Benefits:

• Automatic/manual start with configurable start/stop timers.
• Offers flexibility to control the module manually, remotely or on pre-set timers and start/stop according to battery condition.
• Configurable inputs/outputs (10/8).
• Provides multiple installation options.
• Mains (Utility) failure detection.
• Gives full mains (utility) back up.
• AC/DC voltage measurement.
• Provides flexibility for use on AC or DC systems.
• Battery temperature monitor/charge remaining display/depth of discharge display.
• Provides information on battery temperature, charge remaining and depth of discharge.
• Backed-up real time clock.
• Ensures data is not lost when module is disconnected from its power source.
• Configurable event log (250).
• Provides access to historical alarms and operational status.
• Battery condition automatic start/stop.
• Avoids the battery draining completely by starting the generator when the battery needs charging.
• USB, RS232, RS485, Ethernet and Modbus RTU/TCP communications.
• Provides secure and simple off site monitoring. All ports are continuously active.
