Order code: IL3MRS16BAA, IL3MRS16BLA

New generation of one of the world's most successful controllers in its class.

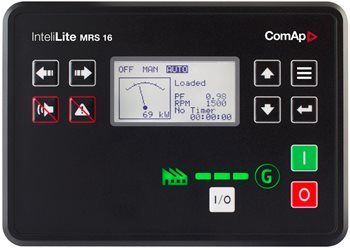

Advanced single gen-set controller for Prime-power applications.

• Single gen-set controller for prime power applications
• Easy to install, configure and use
• 5 languages in the controller
• 3 level of password
• 3 sets of alternative configuration
• Direct communication with EFI engines
• Tier 4 final ready
• Total remote monitoring and control
• Cloud-based monitoring and control via WebSupervisor
• Wide range of communication capabilities including:
  • connection via RS232, RS485, CAN and on board USB
  • internet access using Ethernet, GPRS, 3G or 4G
  • support for Modbus (TCP/RTU) and SNMP (v1/v2c – including traps)
• Active SMS and emails in different languages
• Geofencing and tracking via WebSupervisor
• In-built PLC, complemented with a PLC monitoring tool in InteliConfig
• 11 inputs and 7 outputs on-board
• 2x 10 A binary outputs for cranking and fuel solenoid
• More I/Os available over plug-in or CAN modules (CM-BIO8-EFCP, Inteli AIN8, Inteli AIN8TC, Inteli AIO9/1, Inteli IO8/8, IGS-PTM)
• Remote Annunciator over CAN
• Activation of outputs based on inputs
• Load shedding, dummy load capability
• Real time clock (with battery)
• Multipurpose flexible timers
• Flexible event based history with up to 350 events
• True RMS measurement
• Comprehensive protections
• Possibility to disable protections
• Available also in low temperature version (Order code: IL3MRS16BLA)
• UL Listed
