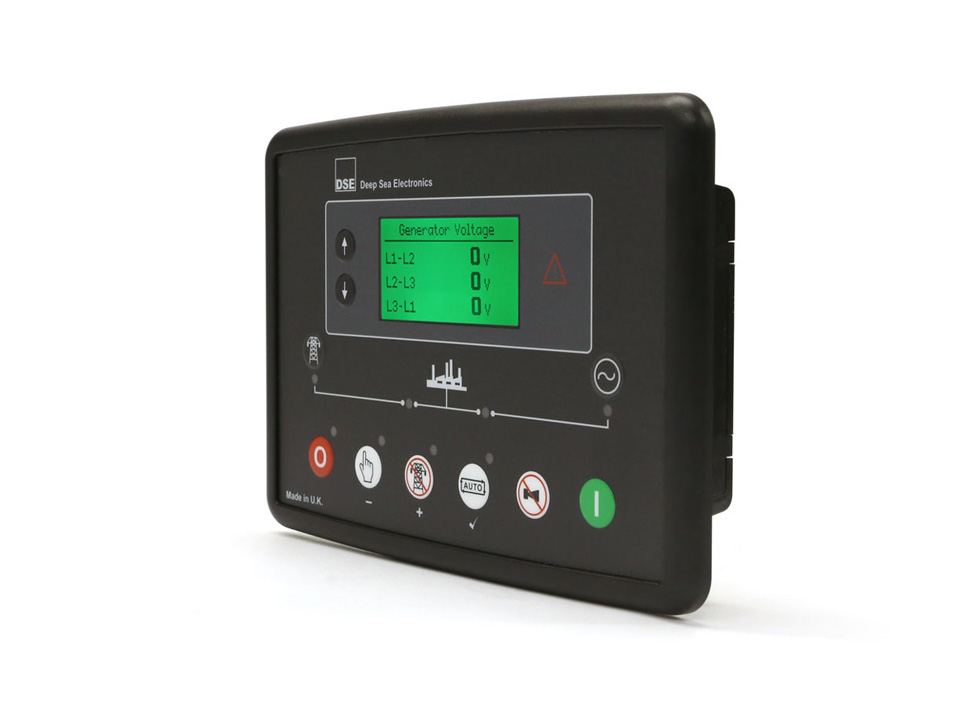

DSE6120 controller for generator 215*158*42 mm 3.5Hz to 75Hz generator controller

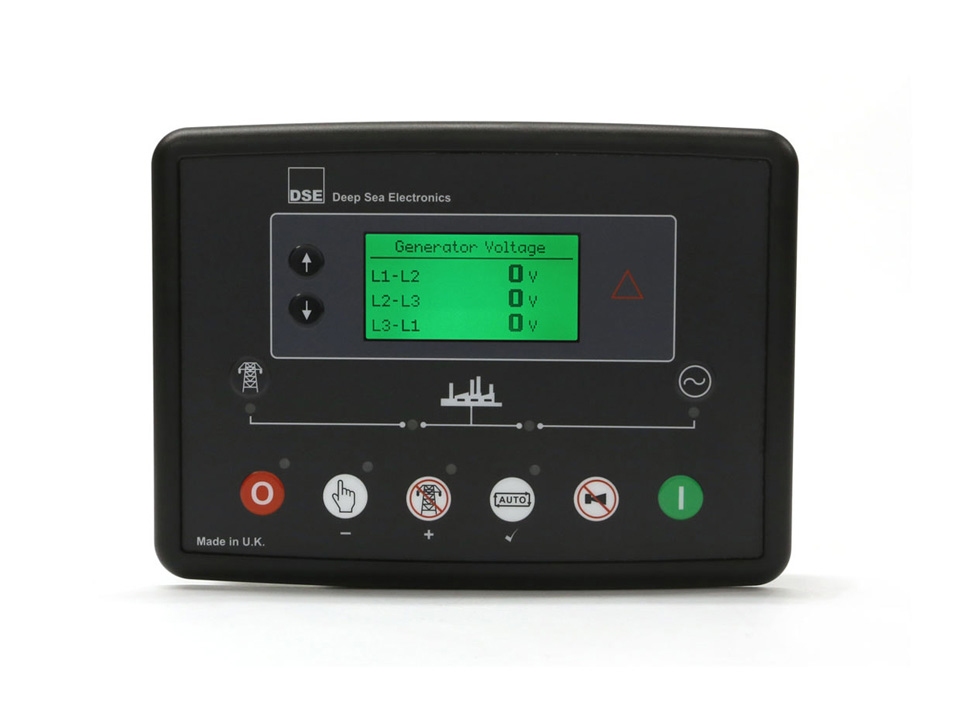

Description:
The Model 6120 is Automatic Engine Control Module, which has been designed to allow the OEM to meet most of the industry's complex specifications. The module is used to automatically start and stop the engine, indicating the operation alstatus and fault conditions, automatically shutting down the engine and indicating the engine failure by means of a graphical LCD display and a flashing LED on the front panel. Selected operation altimers and alarms can be altered by he customer. Adjustments are made by using the integral front panel editor allowing changes in the field, with no specialist equipment required.
Features:
• Back-lit text LCD display
• Front panel editing
• LED and LCD alarm indication
• Power Save mode
• CAN and Magnetic Pick-up/Alt. versions available (specify on ordering)
• PC and front panel configuration
• 6 Digital inputs
• 3 Analogue inputs
• 6 Outputs (4 configurable on Magnetic Pick-up/Alt., 6 configurable on CAN version)
• Configurable timers and alarms
• Alternative configuration
• Event Log (10)
• Remote Start input
• 3 Phase generator monitoring
• Current Monitoring and protection
• Battery voltage monitoring
• Engine pre-heat
• Hours counter
• Comprehensive shutdown or warning on fault condition

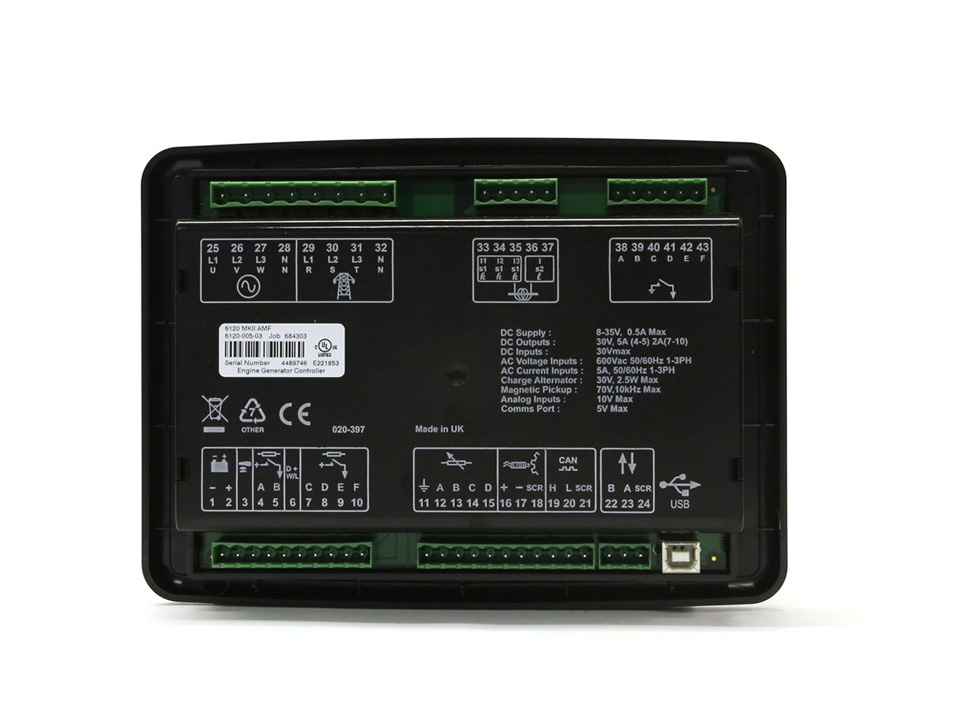

Specification:
Operating Voltage |
DC8.0V to DC35.0V,Continuous Power Supply. |
Power Consumption |
<3W(standby:≤2W) |
Alternator Input Range |
15V - 360 V AC (ph-N) |
3-Phase4-Wire |
26V - 620 V AC (ph-ph) |
3-Phase3-Wire |
15V - 360 V AC (ph-N) |
Single-phase2-wire |
15V - 360 V AC (ph-N) |
2-Phase3-Wire: |
|
Alternator Frequency |
50/60Hz |
Speed Sensor voltage VPP |
2.2 - 100Vpp (Peak to peak) |
Speed Sensor Frequency |
10000Hz (max) |
Start Relay Output |
16Amp Controller Power Voltage Output |
Fuel Relay Output |
16Amp Controller Power Voltage Output |
Programmable Relay Output 1 |
7Amp 250VAC Voltage Free Output |
Programmable Relay Output 2 |
7Amp 250VAC Voltage Free Output |
Programmable Relay Output 3 |
16Amp 250VAC Voltage Free Output |
Programmable Relay Output 4 |
16Amp 250VAC Voltage Free Output |
Case Dimension |
210mm x 152 mm x 48 mm |
Panel Cutout |
186mm x 141mm |
C.T. Secondary |
5A Rated |
Working Conditions |
Temperature: (-25~+70)°C Humidity:(20~90)% |
Storage Condition |
Temperature::(-40~+85)°C |
Protection Level |
IP55:When waterproof rubber seal installed between the controller and panel fascia. |
IP42:When waterproof rubber seal is not installed between the controller and panel fascia. |
|
Insulating Intensity |
Object: input/output/power |
Quote standard: IEC688-1992 |
|
Test way: AC1.5kV/1min leakage current:3mA |

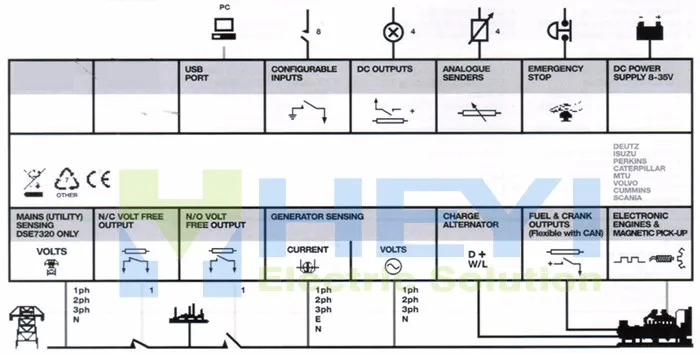

Comprehensive feature list to suit a wide variety of gen-set applications:
