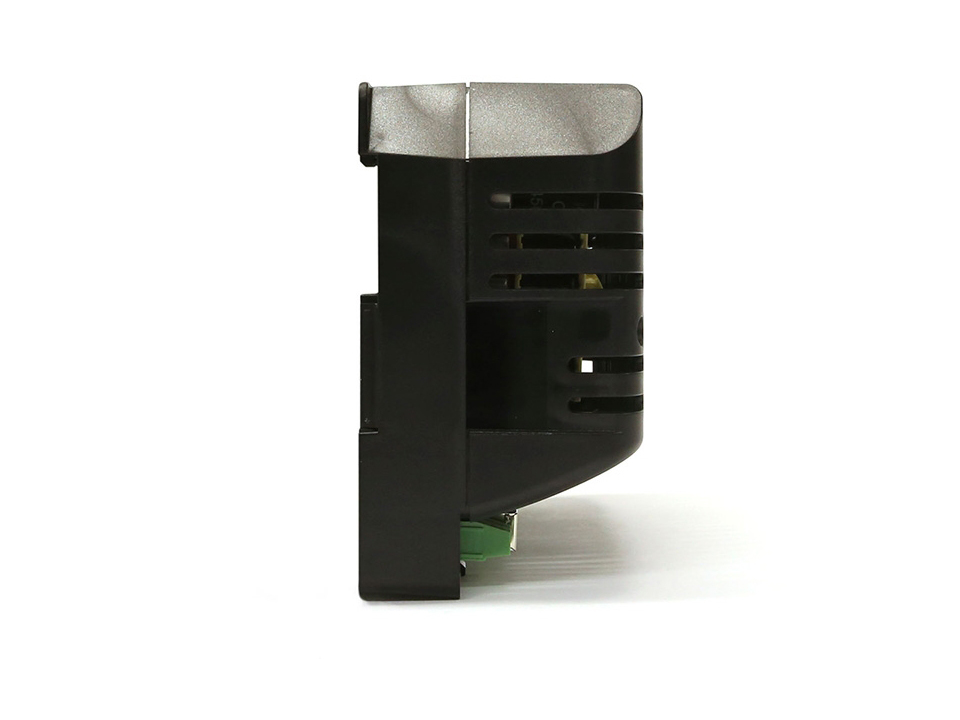

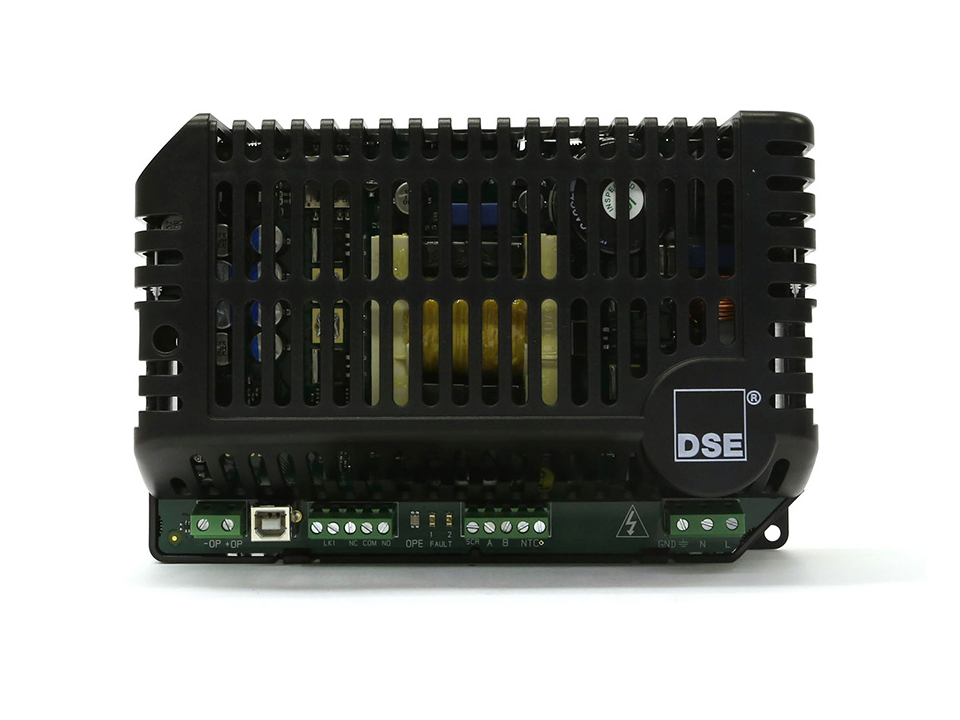

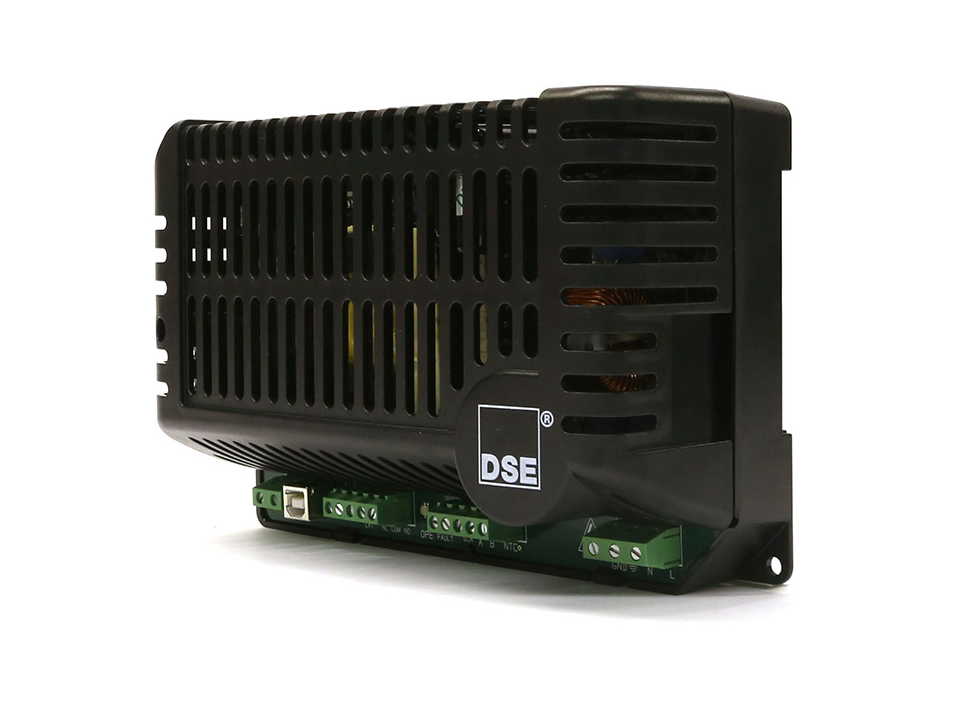

DSE9470 24 Volt 10 Amp DC Battery Charger

Brief introduction：

Deep Sea Electronics
DSE9470 24volt 10amp DC Battery ChargerThe DSE9470 is an intelligent battery charger that can be programmed for different charging curves t...MORE >>

Classification：deepsea controller

Size：70 mm x 200 mm x 130 mm

Weight：0.75kg

Price：

Introduction

Deep Sea Electronics
DSE9470 24volt 10amp DC Battery Charger

The DSE9470 is an intelligent battery charger that can be programmed for different charging curves to

maximise the life of the battery.

The DSE9470 is programmed using the user-friendly DSE Configuration Suite PC software. The charger can be either mounted via DIN rail or to the chassis, using the fixing holes that are built into

the case. The charger’s stylish design includes three coloured LEDs to indicate charging status

and fault conditions.

The charger does not include any moving parts to give added durability and reliability. It will also continue to operate during cranking and running.

MAIN FEATURES

ADVANCED FEATURES

Multi-Stage Intelligent Charging

• Automatic three stage charging

• Constant current – Maximum

current available during charge

recovery phase

• Constant voltage

• Chargers automatically return to

float mode when charging is complete

• Digital microprocessor technology

• Three LEDs indication

• Low Output Ripple

• Makes the chargers ideal for all

battery types

Automatic Boost Mode

• Boosts and equalises cell charge improving battery performance and life

Full Protection

• AC input Under voltage

• AC input Over voltage

• Battery charger output Over voltage

• Battery charger output Over current

• Short circuit protection

• Battery temperature compensation with over temperature protection

• Output short circuit and Inversion polarity

• Automatic power de-rating at

high ambient temperatures

Power Save Mode

• Once the battery is fully charged

the chargers switch to Eco-Power to save energy.

Communication

• * Can be intgrated in to external

systems through MODBUS RTU

using RS485

• Fully configurable via DSE

Configuration Suite PC Software

* Feature to follow shortly

KEY BENEFITS

• Fully flexible to maximise the life

of the battery

• Suitable for a wide range of battery types

• No moving parts for longer battery charger life

• Switched mode design

• Charge fail output

• Minimum 86% efficiency throughout full operating range

• No external intervention for boost mode

• Multiple chargers can be linked together to provide larger current output

SPECIFICATION

AC SUPPLY

VOLTAGE RANGE

90 V to 305 V (L-N)

FREQUENCY RANGE

48 Hz to 64 Hz (L-N)

DC OUTPUT

24 V DC at 10 A

RIPPLE AND NOISE

<1%

EFFICIENCY

>86%

REGULATION

LINE

<0.001%

LOAD

TEMPERATURE SENSOR INPUT

PT1000

PROTECTIONS

Short Circuit

DC Over Voltage

DC Over Current

Reverse Polarity

Over Temperature

AC Under & Over Voltage

DIMENSIONS

OVERALL

70 mm x 200 mm x 130 mm

2.7” x 7.9” x 5.1”

WEIGHT

0.75 kg

STORAGE TEMPERATURE RANGE

-40 oC to +85 oC
