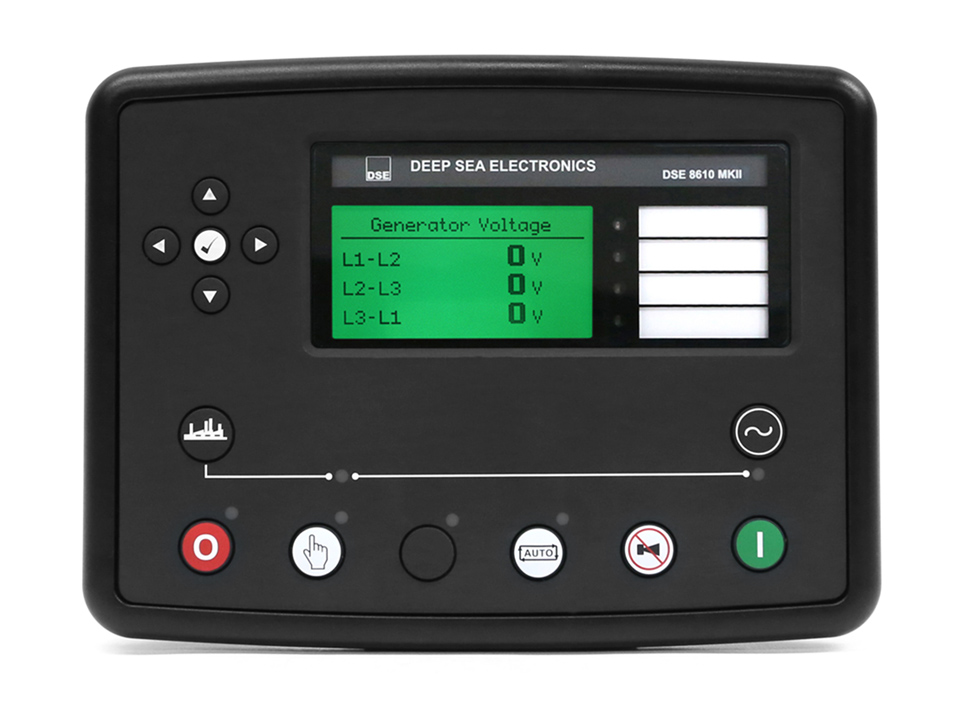

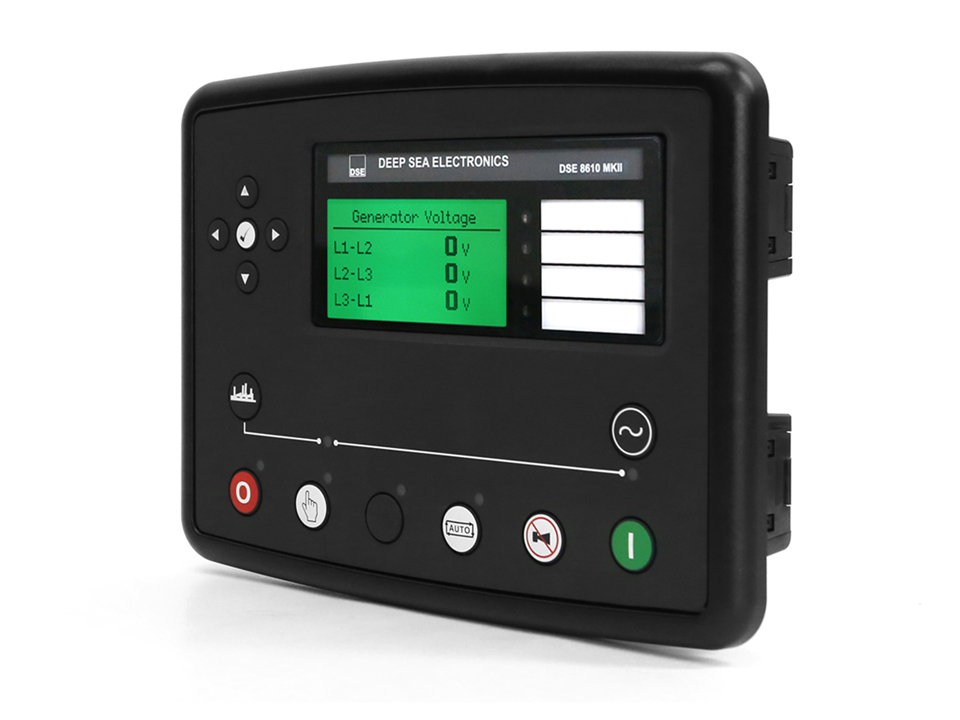

oringally Generator Controller DSE8610

The DSE8610 is an easy to use multi-generator loadshare system, designed to synchronise up to 32
generators including electronic and non-electronic engines.

The DSE8610 monitors the generator and indicates operational status and fault conditions, automatically starting or stopping the engine on load demand or fault condition.  System alarms are annunciated on the LCD screen (multiple language options available), illuminated LED and audible sounder.

The event log will record 250 events to facilitate easy maintenance. An extensive number of fixed and
flexible monitoring, metering and protection features are included as well as comprehensive communication and system expansion options.

Main features

KEY LOAD SHARE FEATURES:

• Peak lopping
• Sequential set start
• Manual voltage/frequency adjustment
• R.O.C.O.F. and vector shift
• Generator load demand
• Automatic hours run balancing
• Mains (Utility) de-coupling
• Mains (Utility) de-coupling test mode
• Dead bus sensing
• Bus failure detection
• Direct governor and AVR control
• Volts and frequency matching
• kW and kV Ar load sharing

KEY FEATURES

• Comprehensive loadshare capabilities
• Configurable inputs (11)
• Configurable outputs (8)
• Voltage measurement
• Built-in governor and AVR control
• kW overload alarms
• Comprehensive electrical protection
• Magnetic pick-up
• Electronic engine capability
• RS232 & RS485 remote communications
• Modbus RTU
• PLC Functionality
