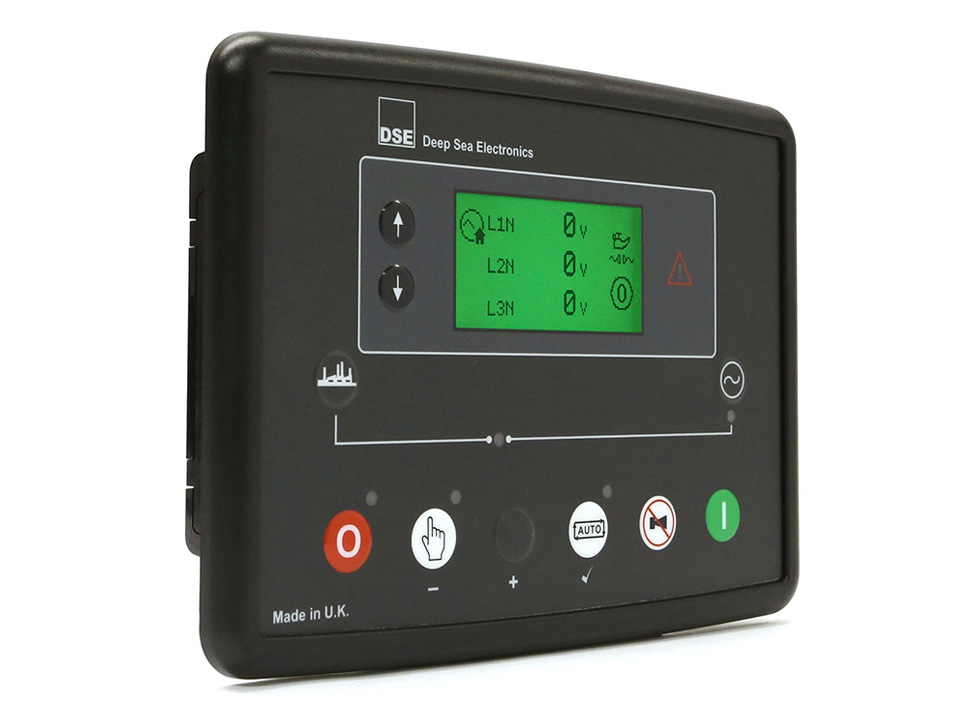

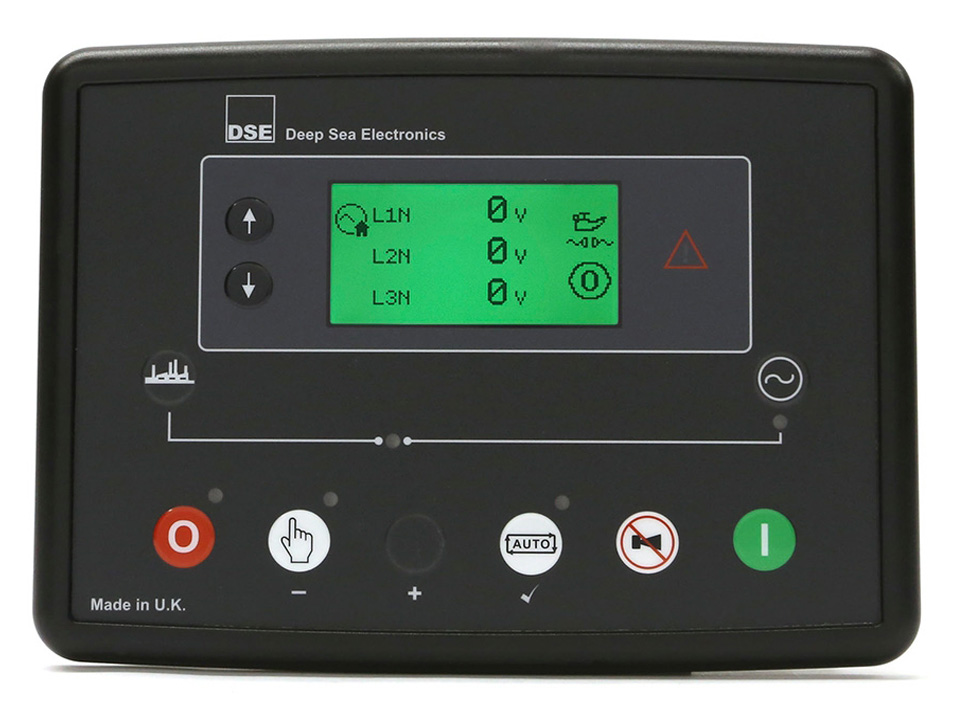

Electronics Controller Generator Control Panel DSE6010

The DSE6010 is an Auto Start Control Module suitable for a wide variety of single, diesel or gas, gen-set applications.

KEY FEATURES

• Back-lit icon LCD display
• Front panel editing
• LED and LCD alarm indication
• Power Save mode
• CAN and Magnetic Pick-up/Alt. versions available (specify on ordering)
• PC and front panel configuration
• 4 Digital inputs
• 3 Analogue inputs
• 6 Outputs (4 configurable on Magnetic Pick-up/Alt., 6 configurable on CAN version)
• Configurable timers and alarms
• Alternative configuration
• Event Log (5)
• Remote Start input
• 3 Phase generator monitoring
• Current Monitoring and protection

• Battery Voltage monitoring
• Engine pre-heat
• Hours counter
• Comprehensive shutdown or warning on fault condition

KEY BENEFITS

• Hours counter provides accurate information for monitoring and maintenance periods
• User-friendly set-up and button layout
• Multiple engine parameters are monitored simultaneously
• Module can be configured to suit individual applications
• Compatible with a wide range of CAN engines
• Uses DSE Configuration Suite PC software for simplified configuration
• IP65 rating (with optional gasket) offers increased resistance to water ingress
• Licence-free PC software
