Brief introduction:
DST-51-DFK / DST-100-2FA4 / DST-111-2FPThis is the price of DST-51-DFK , others please consult, thank you! Special Note: 1,The product is brand new. 2. When the...MORE >>
Classification:TAIYO AVR
Size:20X15X10 cm
Weight:1KG
Price:
Introduction
DST-51-DFK / DST-100-2FA4 / DST-111-2FP

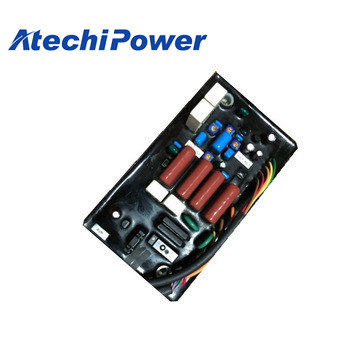

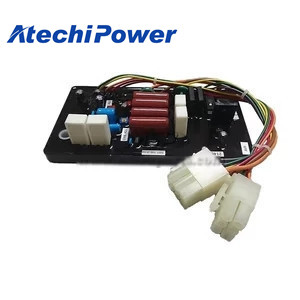

Taiyo AVR DST-100-2FA4
Taiyo AVR DST-100-2FA4 can be replaced by Kutai ADVR-053
Features
Specifications
Sensing Input | Voltage 170~520VAC 1 phase 2 wire DIP switch selectable Frequency 50/60Hz DIP switch selectable |
---|---|
Power Input | Voltage 100~300VAC 1 phase 2 wire |
Output | Voltage Max. 63VDC @ 220VAC input Current Continuous 5A , Intermittent 7A for 10 sec. Resistance Min. 15 ohm, Max. 100 ohm |
Volts Regulation | < ±0.5% (with 4% engine governing) |
Voltage Build-up | Residual volts at AVR terminal > 5VAC |
Over Excitation Protection | 78±5VDC @ 220VAC, 5 sec. |
External Volts Adjustment | 7% with 1K ohm 1 watt trimmer |
Unit Power Dissipation | Max. 8 watt |
Soft Start Ramp Time | 3 sec. |
EMI Suppression | Internal electromagnetic interference filtering |
Thermal Drift | 0.03% per °C change in AVR ambient |
Under Frequency Protection (Factory Setting) |
60Hz system presets knee point at 55Hz 50Hz system presets knee point at 45Hz |
Environment | Operating Temperature : -40~70 °C Storage Temperature : -40~85 °C Relative Humidity : Maximum 95% Vibration : 3G @ 100~2KHz |
AVR Controls Function | VOLTS : Voltage Adjustment STAB : Stability Adjustment U/F*: To Set the U/F Knee Point (*U/F : Under Frequency Protection) |
Dimensions | 107.0 (L) x 75.0 (W) x 48.5 (H) mm |
Weight | 220g ±2% |
