Brief introduction:
Generator AVR 6GA2 491-1A For Siemens 1FC5 Series is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation sy...MORE >>
Classification:Siemens avr
Size:20X15X10 cm
Weight:1KG
Price:
Introduction

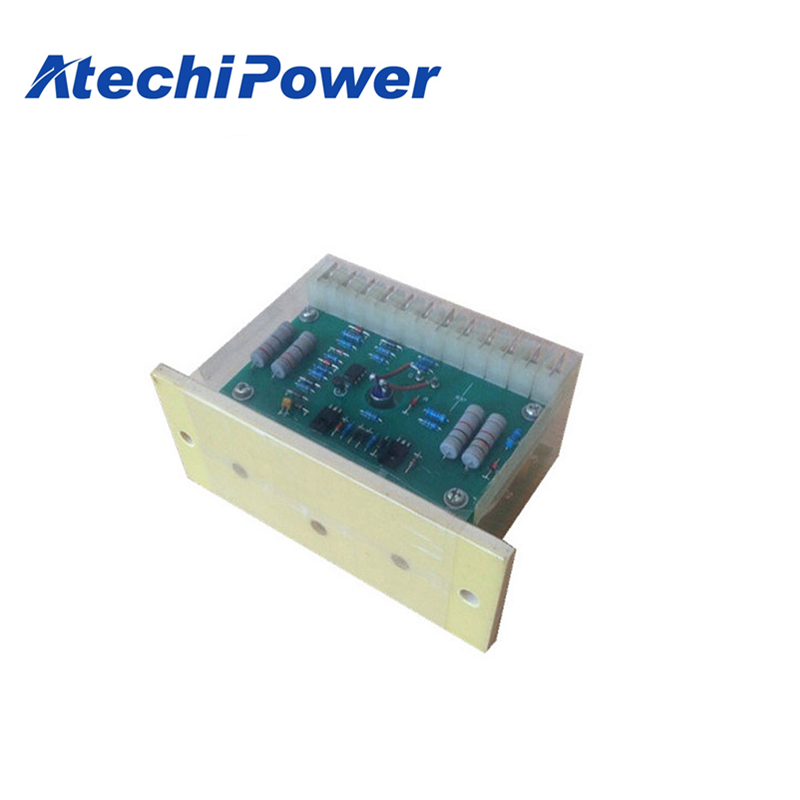

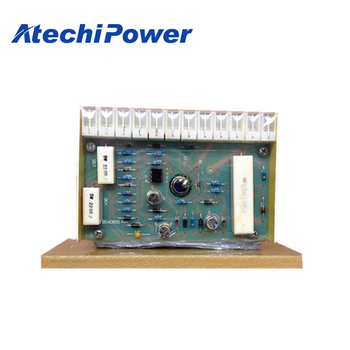

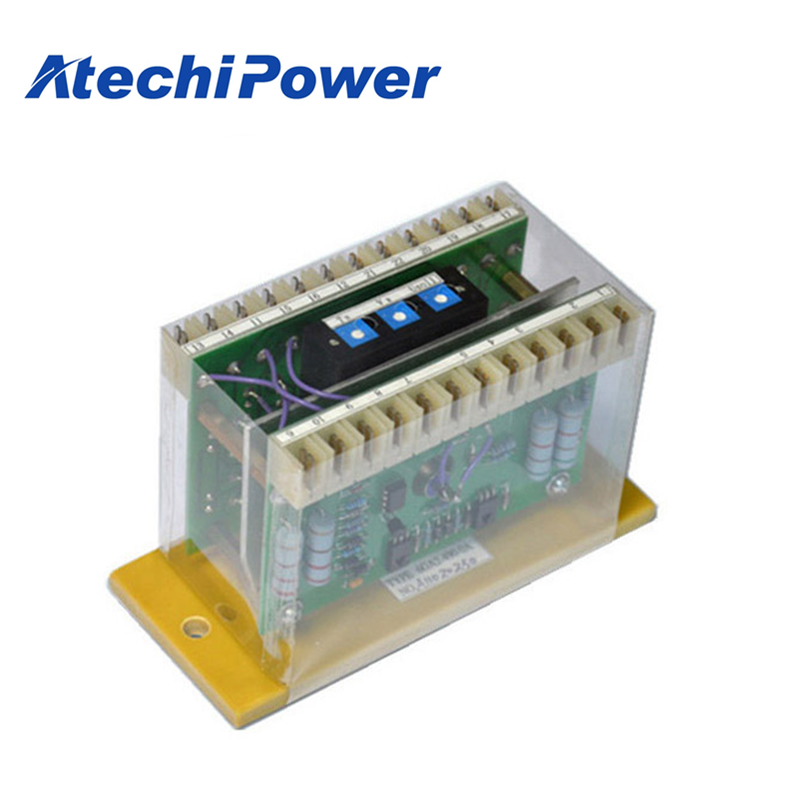

Generator AVR 6GA2 491-1A For Siemens 1FC5 Series is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator. Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.5%
Product Name | 6GA2490-0A |
SENSING/POWER INPUT | |
Voltage | 220/380/440Vac,1 phase ,2 wire |
Freguency | 50/60 Hz jumper selectable |
MAGNETIC FIELD OUTPUT | |
Voltage | 90Vad at 240 Vac |
Current | Continuous 5A,intermittent 7A in 10 seconds |
Features
* Voltage regulation < +/-1%
* Soft start voltage ramping
* Sensing voltage loss protection
* 120 or 240 Vac sensing, jumper selectable
* Under frequency roll off protection
* With under frequency LED indicator
