Brief introduction：
M31FA600A MEC-20 MARELLI AVR is developed by Marelli suitable for Three-phase Synchronous Generators. Which is provided with internal circuits in order to reduce the ...MORE >>
Classification：MARELLI AVR
Size：20X15X10 cm
Weight：1KG
Price：
Introduction

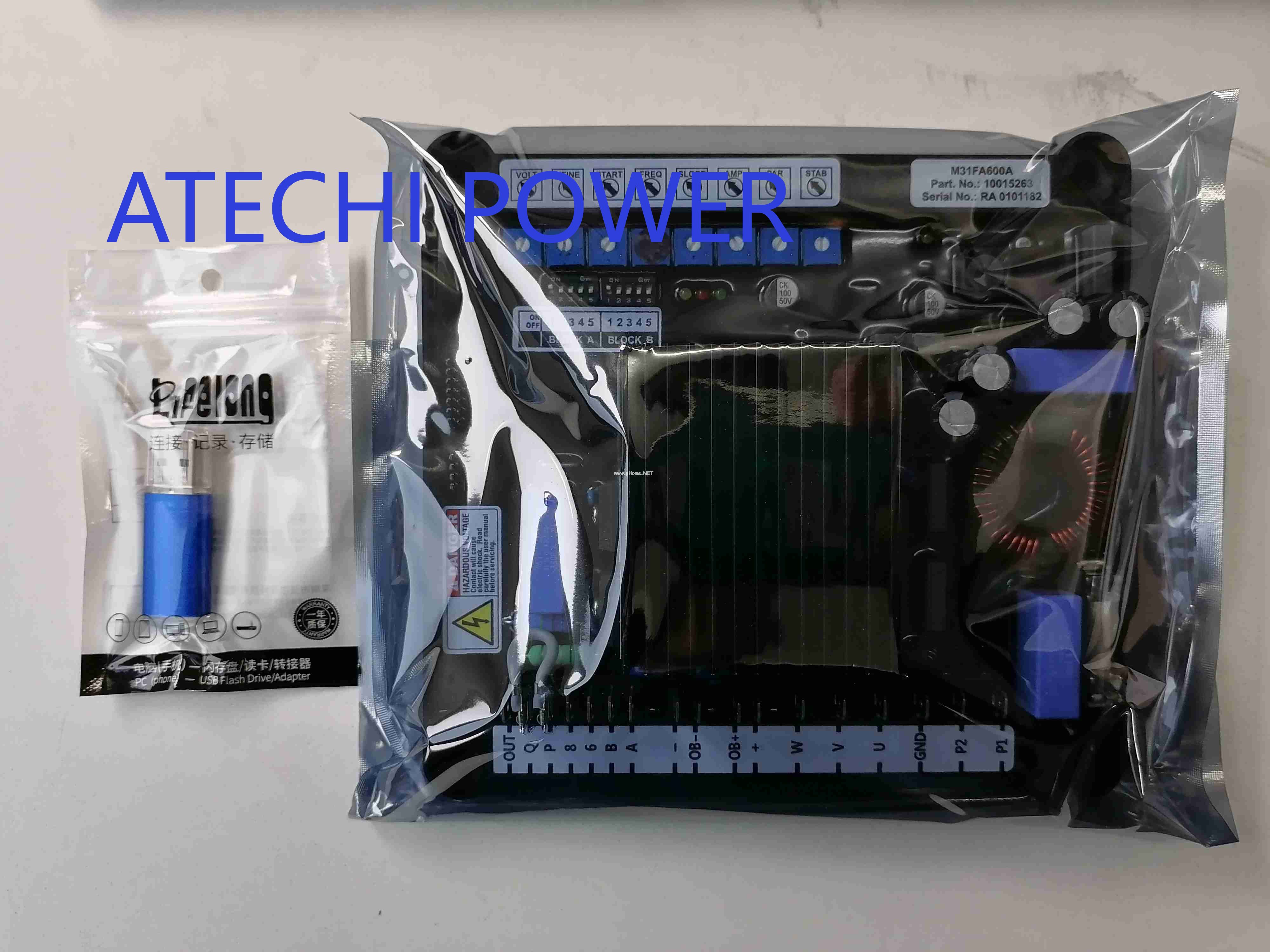

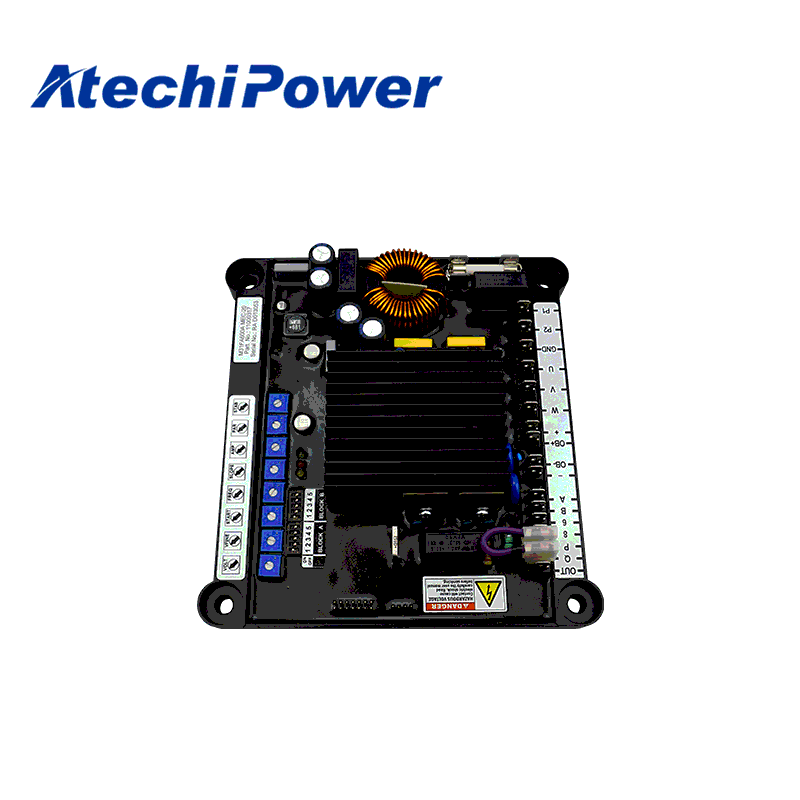

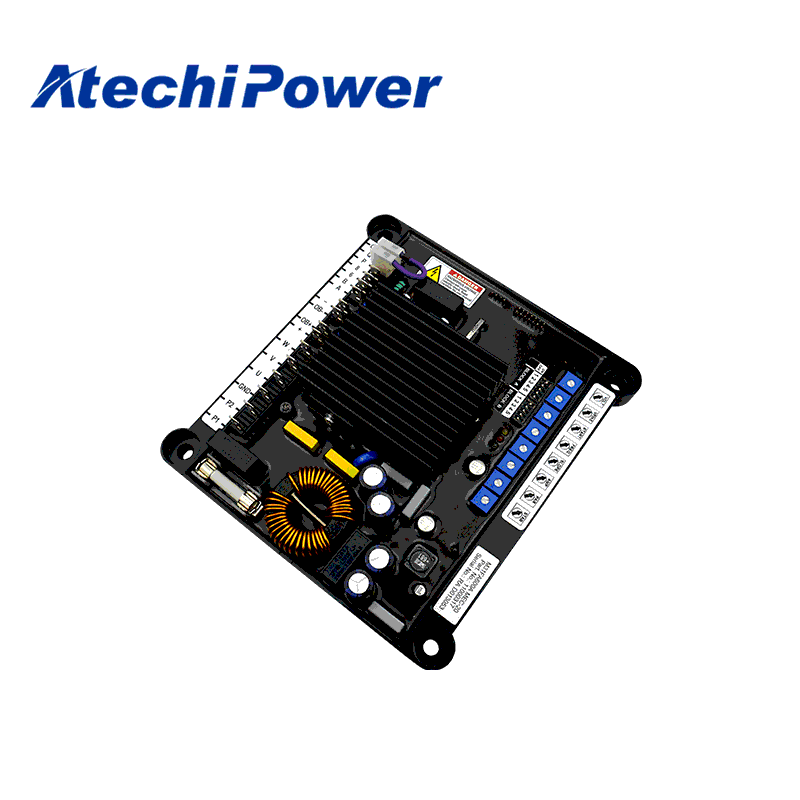

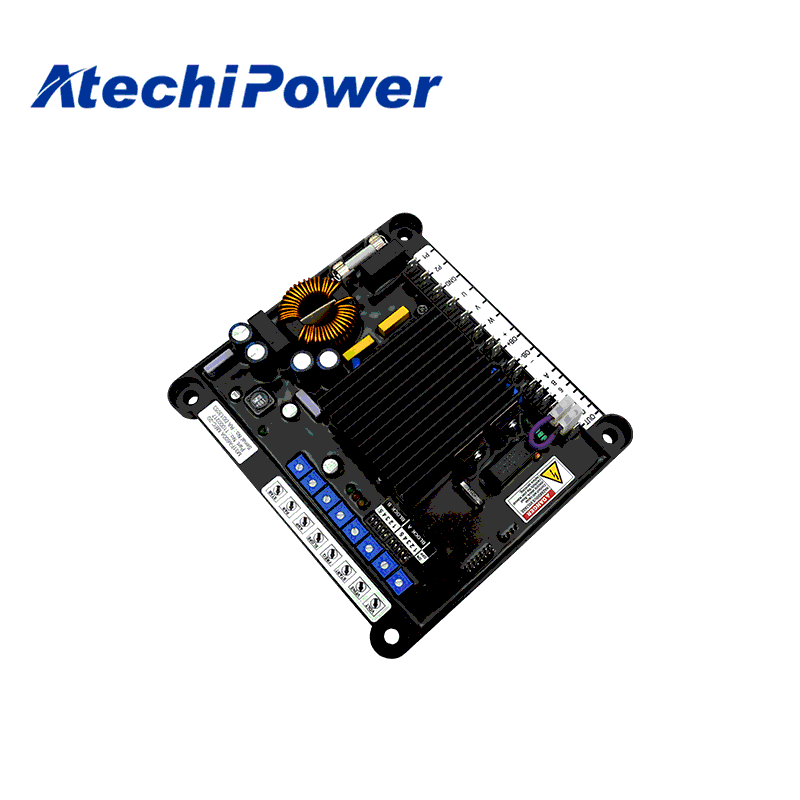

M31FA600A MEC-20 MARELLI AVR is developed by Marelli suitable for Three-phase Synchronous Generators. Which is provided with internal circuits in order to reduce the excitation, when running at low speed, in order to avoid damages to the excitation system of the generator.
1. Marelli Automatic voltage regulator
2. The voltage regulator type "MARK V", is suitable for Synchronous Generators of
MARELLI MOTOR make
3. Fully insulated in order to maintain high reliability also with severe ambient
Conditions (high level of humidity, dust, salt atmosphere), and in case of
high vibrations level
4.Proper both for single and 3-phase generators
| Power supply voltage | 170÷277 V | ||
| (±10% of range tolerance, 50/60Hz) | |||
| Voltage sensing (single-phase) | 170÷277 V | ||
| (±10% of range tolerance, 50/60Hz) | |||
| Maximum continuative field current | 5 A | ||
| Maximum forcing field current (1 minute) | 8A | ||
| Maximum field voltage | 100 V | ||
| Field resistance | 8 Ω ÷ 20 Ω | ||
| Regulation accuracy | ±0.5 % | ||
| (steady state conditions, rated, balanced and non deforming load, constant frequency) | |||
| Thermal Drift | ±0.5 % | ||
| (% voltage change for 50°C change from Tamb, after 10 minutes) | |||
| Response time | 1 cycle | ||
| Operating temperature | -30°C / +70°C | ||
| Weight | 320 g | ||
