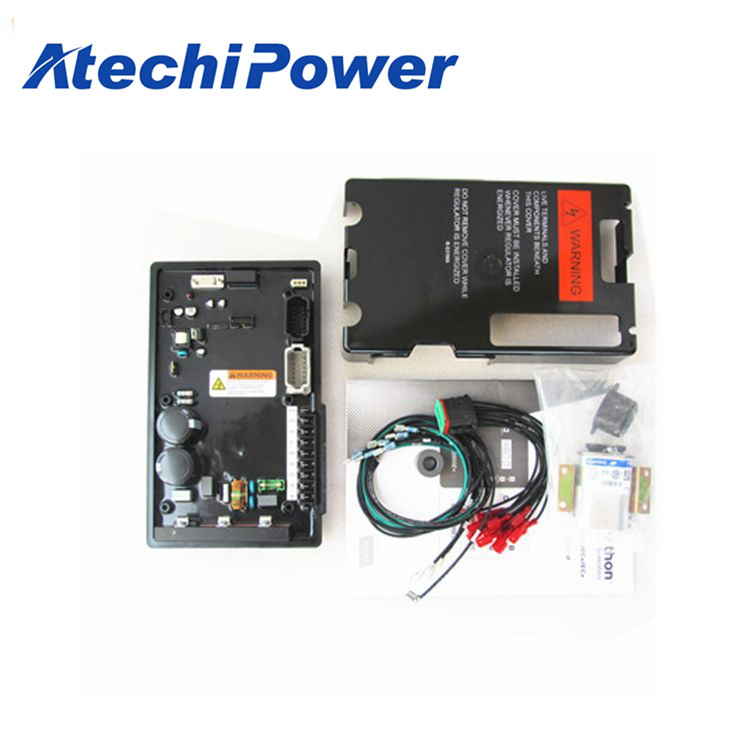

Marathon ELECTRIC DVR2000E+ AUTOMATIC VOLTAGE REGULATOR GENERATORS (NEW OPEN BOX)

Marathon ELECTRIC
DVR2000E+
AUTOMATIC VOLTAGE REGULATOR GENERATORS
ITEM NO. 8794700HMG01

THE DVR2000E+ IS A MICROPROCESSOR-BASED CONTROL DEVICE THAT REGULATES THE OUTPUT VOLTAGE OF A BRUSHLESS, AC GENERATOR BY CONTROLLING THE CURRENT INTO THE GENERATOR EXCITER FIELD. INPUT POWER TO THE DVR2000E+ IS DERIVED FROM A SINGLE PHASE, MULTI-POLE, HIGH-FREQUENCY, PERMANENT MAGNET GENERATOR (PMG).

THE DVR®2000E+ IS SUPPLIED IN AN ENCAPSULATED PACKAGE DESIGNED FOR BEHIND-THE-PANEL MOUNTING. THE DVR2000E+ IS HELD IN PLACE BY THREAD-FORMING SCREWS THAT THREAD INTO ITS PLASTIC SHELL. THE FRONT PANEL DISPLAY ANNUNCIATES REGULATOR STATUS AND SYSTEM CONDITIONS. DVR2000E+ CONNECTIONS ARE MADE THROUGH FOUR TYPES OF CONNECTORS:

• TEN QUARTER-INCH, QUICK-CONNECT TERMINALS FOR GENERATOR CONNECTIONS

• TWO 12-PIN DEUTSCH (DTC STYLE) CONNECTORS FOR CURRENT TRANSFORMER (CT) AND SYSTEM INTERFACE CONNECTIONS

• ONE 3-PIN AMP/TYCO MINI MATE-N-LOK RECEPTACLE FOR CAN BUS INTERFACE.

• ONE 9-PIN DB-9 TYPE CONNECTOR FOR COMMUNICATION BETWEEN THE DVR2000E+ AND A Windows® COMPATIBLE PC.
