Brief introduction：
Generator Spare Parts SE350 AVR Replace for Marathon Electric Automatic Voltage Regulator AVR SE350 Product Description The SE350E voltage regulator is an encap...MORE >>
Classification：MARATHON AVR
Size：20X15X10 cm
Weight：1KG
Price：
Introduction

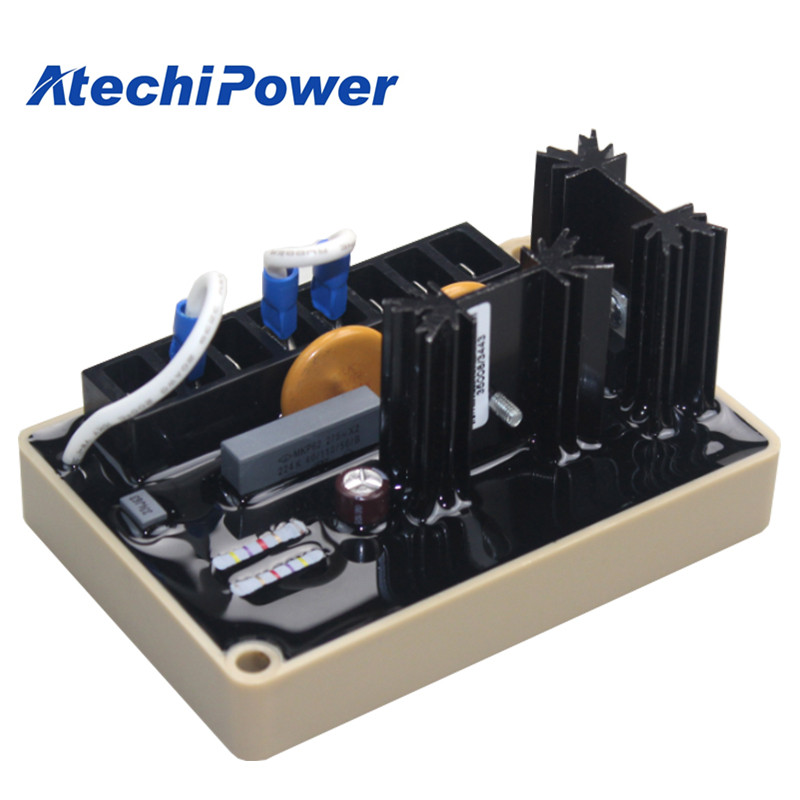

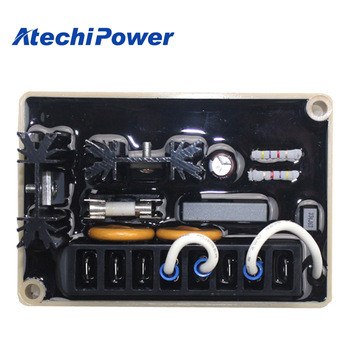

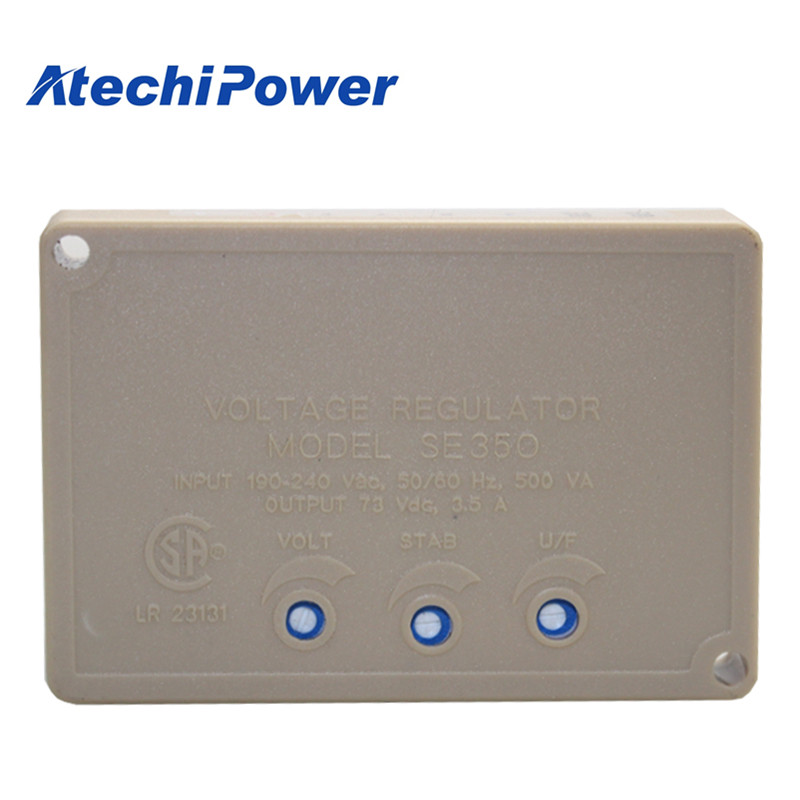

Generator Spare Parts SE350 AVR Replace for Marathon Electric Automatic Voltage Regulator AVR SE350
Product Description
The SE350E voltage regulator is an encapsulated electronic voltage regulator which controls the output of a brushless AC generator by regulating the current into the exciter field.
|
Specification |
|
| Sensing (Average) & Power Input | 190-240 Vac |
| Burden | 500 VA |
| Output Power - Continuous | 73 Vdc at 3.5 Adc (255w) |
| Output Power - Forcing (240 Vac Input Power) | 105 Vdc at 5 Adc (525w) |
| Regulation | 1.0% |
| Exciter Field Resistance | 15 ohms minimum |
| Remote Voltage Adjustment Range |
±10% with 2000 ohm rheostat ±5% with 1000 ohm rheostat |
| Roll Off Frequency |
54-61 Hz for 60 Hz Operation 45-51 Hz for 50 Hz Operation |
| Operating Temperature | -40°C to 60°C |
| Storage Temperature | -65°C to +85°C |
| Power Dissipation | 8 watts maximum |
| Size | 3.9”Lx2.66”Wx2.20”H |
| Voltage Build up | Internal provisions for automatic voltage build up from generator residual voltage as low as 10 Vac. |
| EMI Suppression | Internal electromagnetic interference filter (EMI Filter). |
