Brief introduction:
Description:1. AVR UVR6 voltage regulator is an advanced design.
2. UVR6 equipped with a complete protection system. 3. It is 3. Suitable...MORE >>
Classification:MECC ALTE AVR UVR6
Size:20X15X10 cm
Weight:1KG
Price:
Introduction
Description:
1. AVR UVR6 voltage regulator is an advanced design.
2. UVR6 equipped with a complete protection system.
3. It is 3. Suitable for being used with all alternators
4. It is standard supply for power outputs above or equal to 85 KVA, both three-phase and single phase.
The UVR6 type voltage regulator is an advanced design electronic regulator that ensures excellent performance of the alternators while they are running and during starting.
The regulator is equipped with a complete protection system against operation conditions that could be dangerous for the machine. The UVR6 regulator is suitable for being used with all alternators and is standard supply for power outputs above or equal to 85 KVA, both three-phase and single phase.

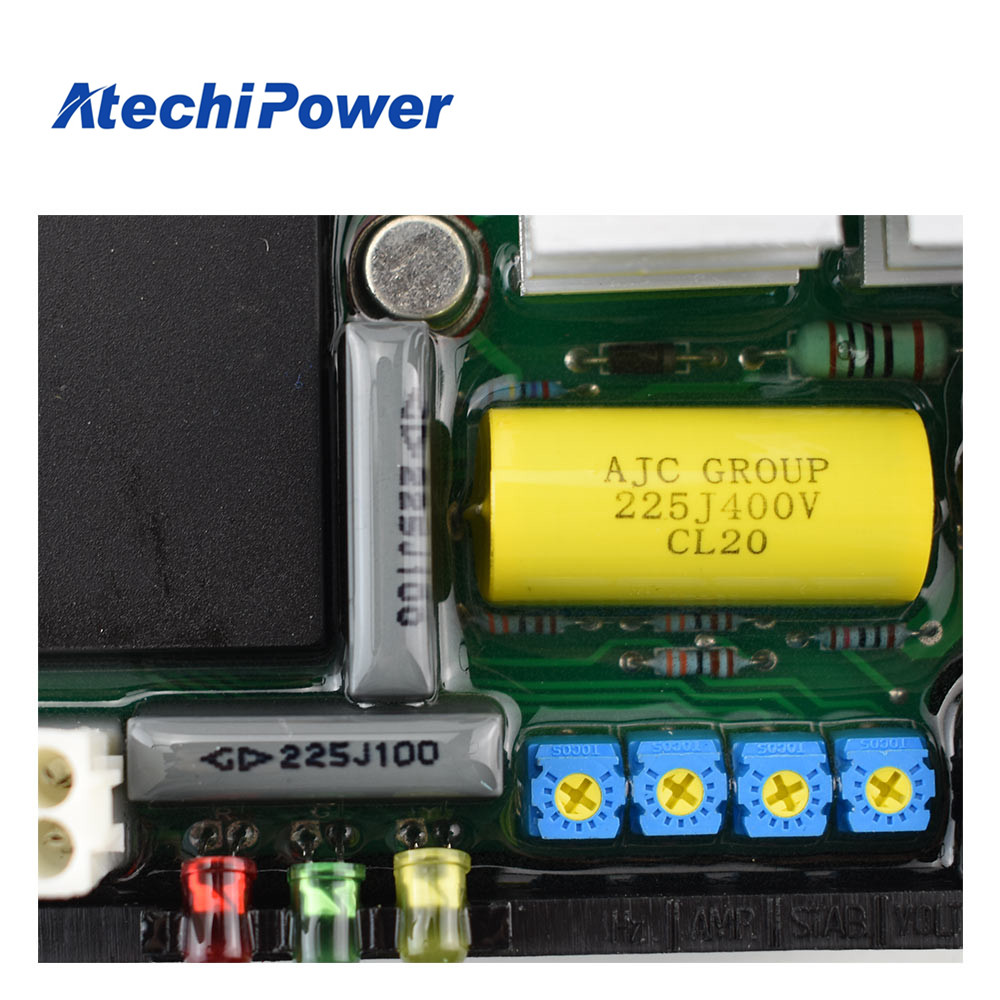

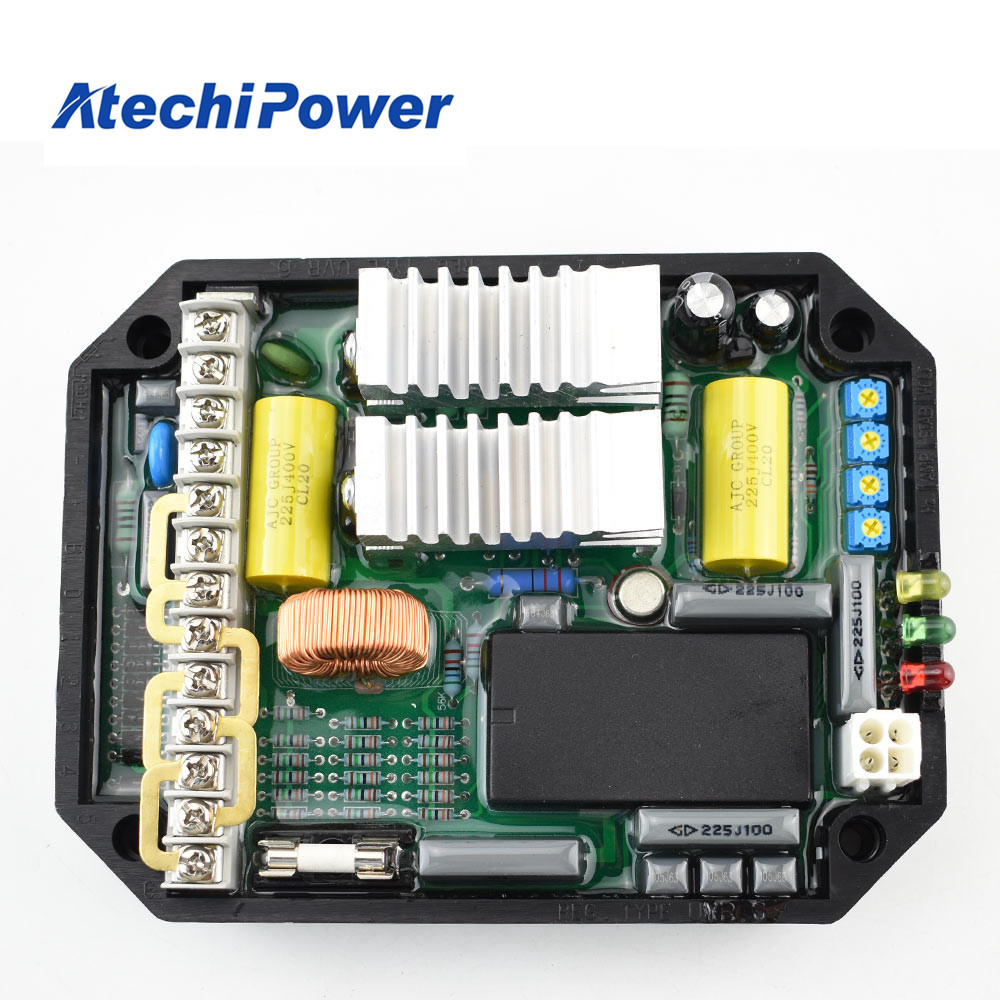

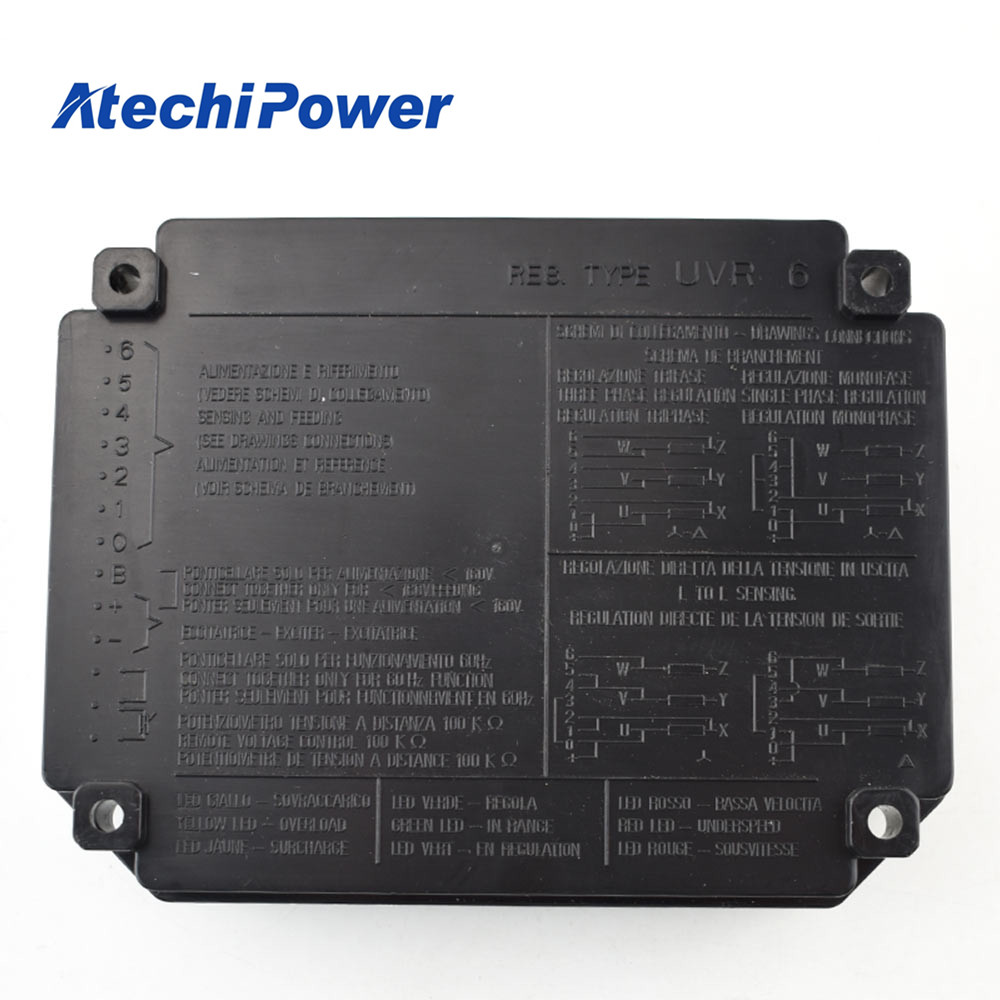

AVR UVR6
THE TECHNICAL DATA OF UVR6 ARE AS FOLLOWING:
INPUT VOLTAGE | 80 to 270 V AC |
SENSING VOLTAGE | 100 to 415 V AC |
OUTPUT EXCI. VOLTAGE | 100 V DC max. |
OUTPUT EXCI. CURRENT | 4 A DC. ( 12 A DC FOR 15 -SECONDS ) |
INPUT FREQUENCY | 50 / 60 Hz |
RESIDUAL BUILD UP | 5 V AC AT 50 Hz. |
VOLTAGE REGULATION | ±1 % |
UNDER FREQUENCY | FACTORY SETTING 47 Hz, REMOVE LINK FOR 57 Hz. INDICATION BY UFI - LED |
OVER EXCITATION CURRENT TRIP ( AMP / OEI ) |
25 SECONDS DELAY TIMER. ADJUSTABLE POT RANGE 0 - 4 ADC. INDICATION BY OEI - LED |
EXTERNAL POTENTIOMETER | ±5 % using 100 K Ohms pot |
DROOP ( Q1 & Q2, 5Amp C.T. ) | ±10 % at 5 Amperes |
TRIM ( A1 & A2 ) | ±5 V DC |
VIBRATION | 20-100Hz 50 mm/sec 100Hz - 2 Khz 3.3g |
OPERATING TEMPERATURE | -40 TO +70 C |
STORAGE TEMPERATURE | -55 TO +80 C |
RELATIVE HUMIDITY | 0 TO +70 C : 95 % |
FUSE ( FAST ACTING) | 4 AMPS ( Size: 20 X 5 mm) |
DIMENSIONS (L X B X H) | 150 X 115 X 38 mm |
WEIGHT | 415 gms |
