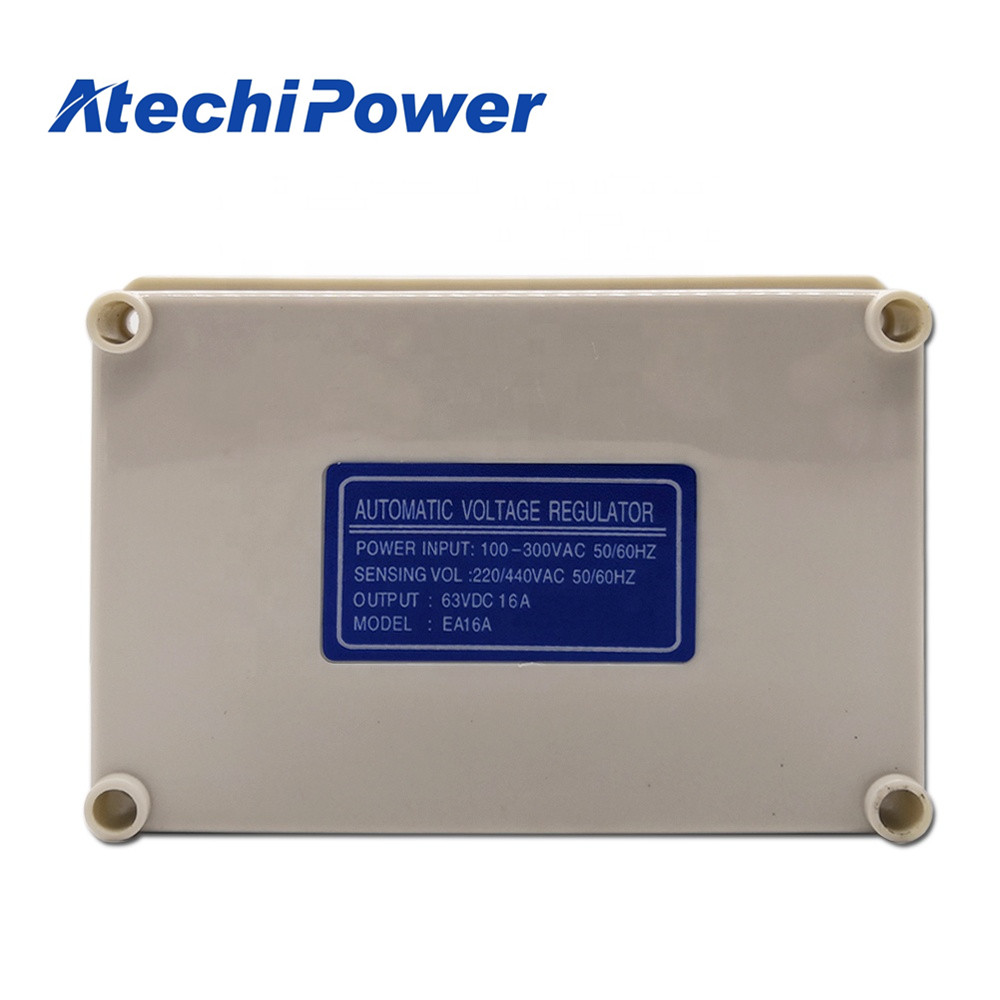

Brief introduction:
The EA16 AVR is an update of the EA15A AVR. It is similar to the original EA15A in power and voltage sensing capabilities but with new enhanced paralleling func...MORE >>
Classification:KUTAI AVR
Size:20X15X8 cm
Weight:1KG
Price:
Introduction

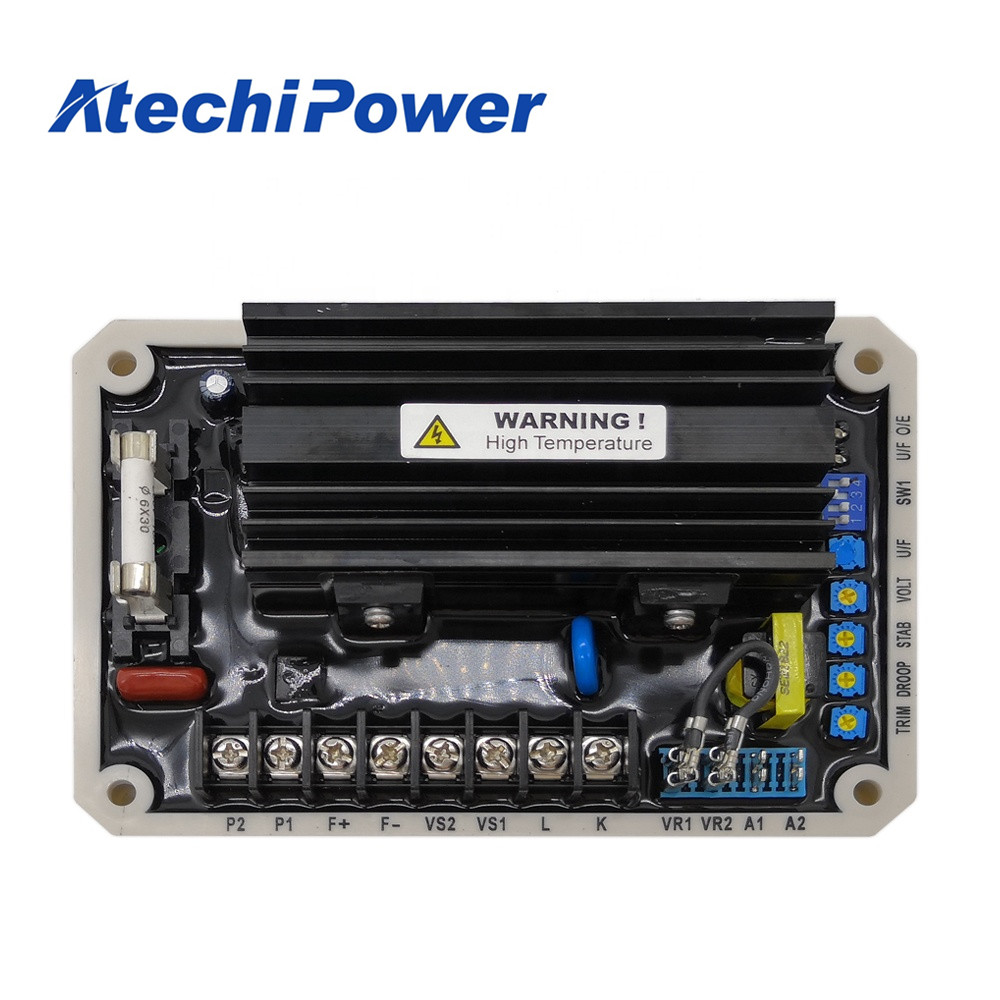

The EA16 AVR is an update of the EA15A AVR. It is similar to the original EA15A in power and voltage sensing capabilities but with new enhanced paralleling functions; the user can now select the CT inputs either 1 & 5 Amp or use new A1 & A2 analogue signal inputs terminals for use with PLC paralleling controls. It has new over-voltage excitation safety circuits to prevent damage caused by the accidental detachment of the sensing wires or irregularities on the generator’s excitation circuits.
Specification |
|
Sensing Input Voltage | 170 ~ 510 VAC, Single Phase 2 wires Voltage is DIP Switch selectable |
Frequency | 50/60 Hz, DIP Switch selectable |
Power Input Voltage | 60 ~ 300 VAC, Single Phase 2 wires |
Output Voltage | Max. 90 VDC @ 240 VAC input |
Current | Continuous 16A Intermittent 20A for 10 sec |
Resistance | Min. 5 ohm |
Voltage Regulation | < ± 0.5% ( with 4% engine governing ) |
Voltage Build-up | Residual voltage at AVR terminal > 5 VAC |
Thermal Drift | 0.03% per °C change in AVR ambient |
Load Current Compensation | 1A or 5A Max. 7% @ PF±0.5 DIP Switch Selectable |
Analogue Voltage Input | Max. ±5VDC. ±10% @ ±3VDC |
Over Excitation Protection | Max Output DCV 95% 20sec |
External Volts Adjustment | ± 5% with 2K ohm 1 watt trimmer |
Unit Power Dissipation | Max. 10 watt |
Under Frequency Protection ( Factory Setting ) | 50/60 Hz DIP SW selectable |
Soft Start Ramp Time | 2 sec. |
Dimensions | 156mm L * 106mm W * 43mm H |
