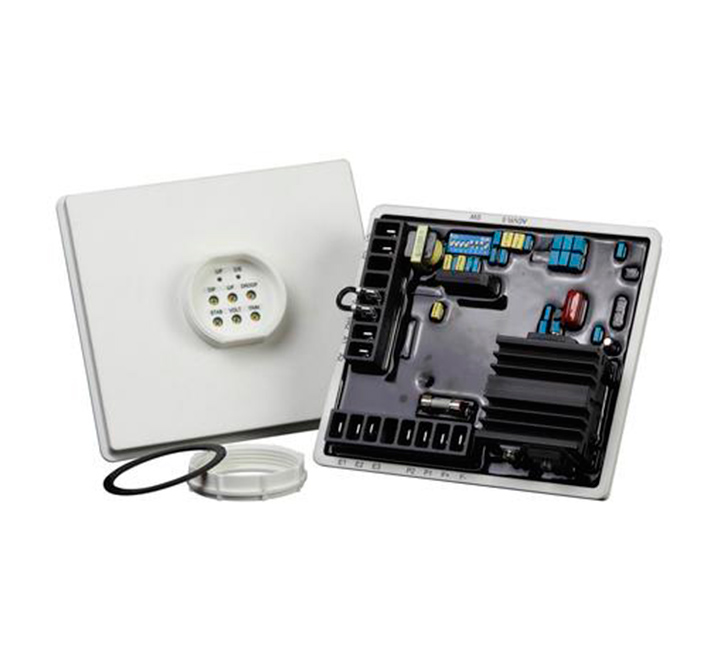

ADVR-2300M AVR KUTAI automatic voltage regulator

Brief introduction:

Automatic Voltage Regulator (AVR) substitutes for Marathon DVR2000 SeriesADVR-2100M is a hybrid Analog/Digital AVR that replaces Marathon DVR2000 Series. It can...MORE >>






3.5Amp Hybrid Analog/Digital AVR for Shunt, PMG/Aux. Winding Genset

ADVR-2300M is a hybrid Analog/Digital AVR which is compatible with Marathon DVR2000 Series. This voltage regulator can be used on single/three phase sensing and Shunt/PMG/Aux.Winding. It has PF (power factor) correction inputs and the facility for droop CT connection.
* It can be used with KUTAI IVT Generator Excitation Booster to increase motor starting capacity.
* If not for use with the IVT Generator Excitation Booster, the ADVR-2100M can be used instead,and purchased at a big discount.
  • Power input single phase 60 to 300 Vac @ 50 to 500 Hz
  • Sensing input 1 or 3 phase 220 to 600 Vac programmable, RMS reading
  • Voltage regulation less than +/-0.5%
  • 50/60 Hz selectable
  • Multiple power input source SHUNT, AUX, HARMONIC, PMG
  • Inverse-time over excitation and under frequency protection
  • Soft start voltage ramping
  • Built-in high capacity protection fuse
  • Panel mounted, internal wiring external adjustment
  • Apply with KUTAI IVT-1260/IVT-2460 to exceeds normal generator motor starting capabilities
