Universal AVR 100A Automatic voltage regulator for bush type 3 phase Diesel generator AC Volt Regulation Stabilizer










We have high quality Universal 100A AVR AVR-100A for brush and Brushless Generator in our regular stock with Reasonable Price!

Other Universal models:
Brushless: GAVR-8A, GAVR-12A,GVAR-15A,GAVR-20A , AVR-704,AVR-703
Universal Brush & Brushless: AVR-701,AVR-35A,POW50A,POW50B, AVR-100A





Other models

Other AVR Models We Provide:(Product increasing ,some may not list below)

SX460 SX440 AS440 AS480 MX321 MX341 MX450...

R220 R230 R250 R438 R448 R449 R450 R450M R450T...

GAVR-8A GAVR-12A GAVR-15A GAVR-20A AVR-35A POW50A POW50B 703 704 701 AVR-100A...

M40FA640A M16FA655A...

VR6 K65-12B K125-10B AVC63-12B...

UVR6 SR7 DSR DER....

.....

Product Introduction

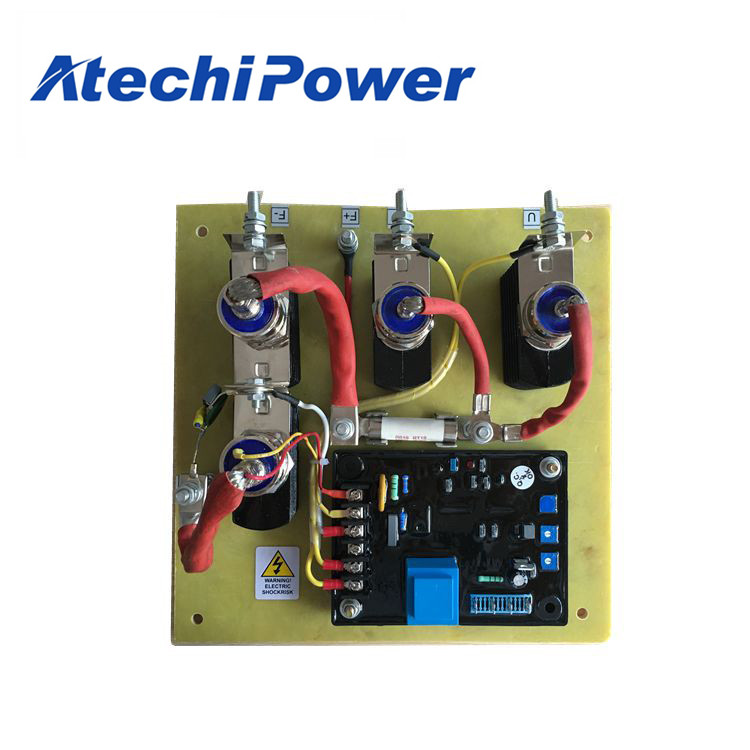

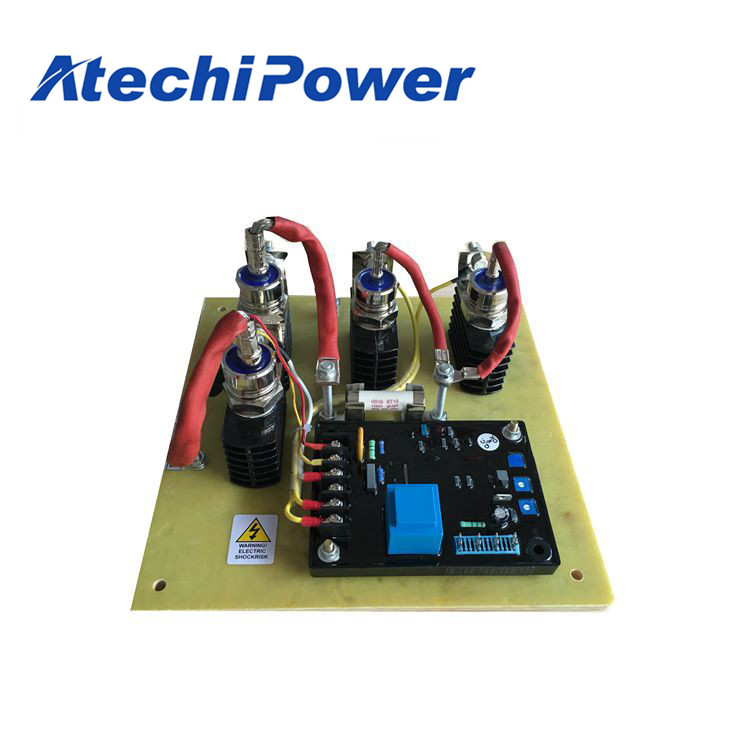

 Voltage Regulator  AVR 100A

Product model: AVR-100A
Power input voltage: 190~264V ac ,single phase

Working frequency: 50/60 HZ

Output voltage: 15-125Vdc (continuously adjustable when inputting 220Vac)

Continuous output DC current: 75.3A

Maximum output DC current: 93A (within 10 seconds)

Voltage ripple peak (voltage regulation rate): <± 1.5% (engine speed variation is within 4%)

Voltage establishment: The power input terminal needs to have a residual magnetic flux of 5Vac or more.

Low frequency protection: When the LED is lower than 45HZ (1350r/min), the red LED lights up.

Self-consumption power: up to 25W

Size: Length: 300mm Width: 230mm Height: 80mm

Weight: 2000g

Product advantages:
1. The system control part is designed to promote high current and high power independently, and the relay is coldStart the
build pressure without any arc sparks. When the speed is lower than 1350r/min (45Hz), the LED light will be emittedWarning.
(Not like other manufacturers use a SX460 or GAVR-12A plus a large thyristor, large diode modified).


2. The power output part is an integrated modular design, which is significantly more efficient than other similar products.


3. The operating frequency is automatically switched between 50Hz and 60Hz.


4. Use a 5mm bakelite base plate to improve the earthquake resistance. The bottom bolts will not be energized and do not need to
be insulated.
