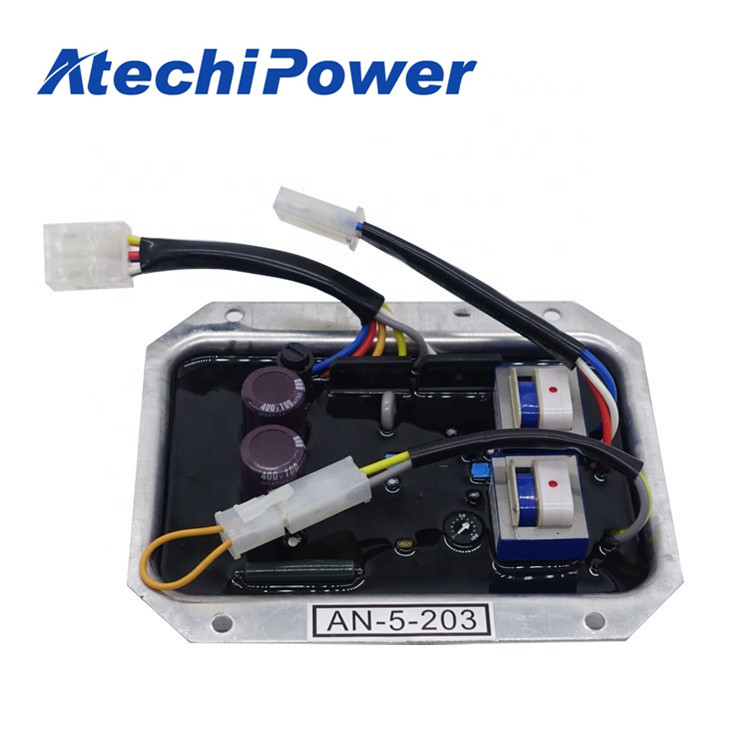

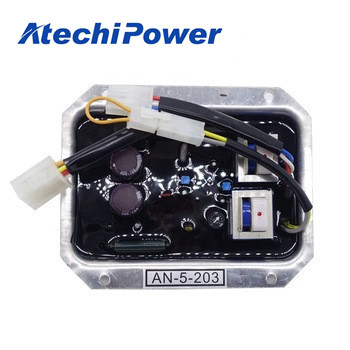

AVR AN-5-203
Apply for TLG-18SPY, DCA-13ESK, 15ESK,
25SPK, 25ESK, 25ESI, 25SPI

Denyo Diesel Generator Parts  AN-5-203

Product Description

Gold Plus Supplier Generator AVR AN-5-203 for Denyo Generator china replaced is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator. Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.5%

Technical Data

China Manufacturer Supply Generator AVR AN-5-203
Sensing Input voltage	55-200V AC
Frequency	50/60HZ
Output voltage	Max 120V /5 A dc/10s.
Voltage input	400Vac,50Hz/60Hz
UFRO	Slop 17% down to 30Hz
Volts regulation range	≥ 15%
