Brief introduction:
Voltage Regulator AVR AVC63-4AVC63-4 1 phase 2 wireIt is self excited brushless AVR compatible with 10-300kw generator . Voltage 190-240VAC Frenq...MORE >>
Classification:BASLER AVR
Size:20X15X10 cm
Weight:1KG
Price:
Introduction

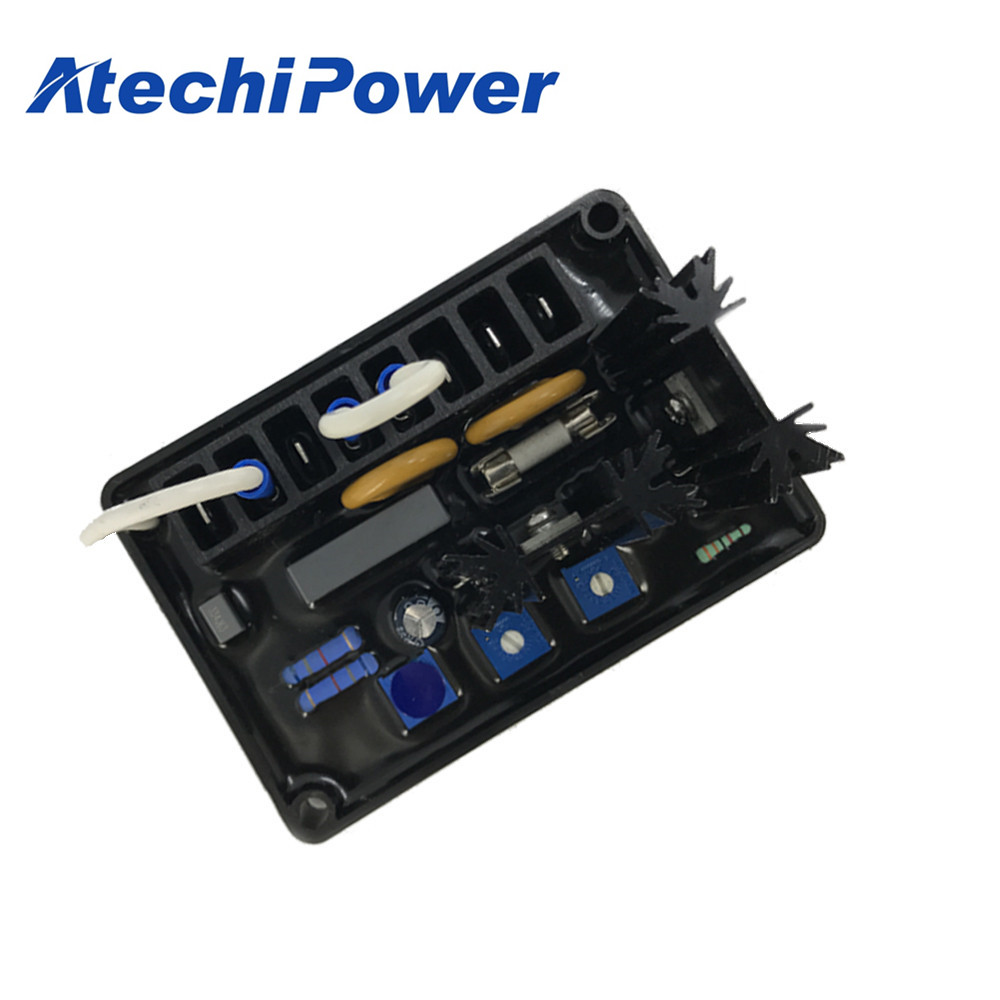

Voltage Regulator AVR AVC63-4
AVC63-4 1 phase 2 wire
It is self excited brushless AVR compatible with 10-300kw generator .
Voltage | 190-240VAC |
Frenquency | 50/60Hz,Jumper selectable |
Voltage | Max 73VDC@220VAC input |
Current | Continuous 3.5A , intermittent 7A for 10 secs(52/105VDC) |
Resistance | Min.15 ohm , Max 100ohm |
Voltage Build-up | residual voltage at avr terminal >5VAC |
Voltage Regulation | <±1% WITH 4% engine governing |
Operating Temperature | (-40°C to +60°C |
Storage Temperatue | (-65°C to +85°C |
External Volts Adjutment | ±10% with 2k ohm 1 watt trimmer |
EMI Suppression | Internal electromagnetic interference filtering |
Unit Power Dissipation | Max.8 watt |
Under Frequency Protection | 60Hz system presets knee point at 54-61Hz |
50Hz system presets knee point at 45-51Hz | |
Dimensions | 99.5mml*67mmW*47.5mmH |
Weight | 250g±2% |
