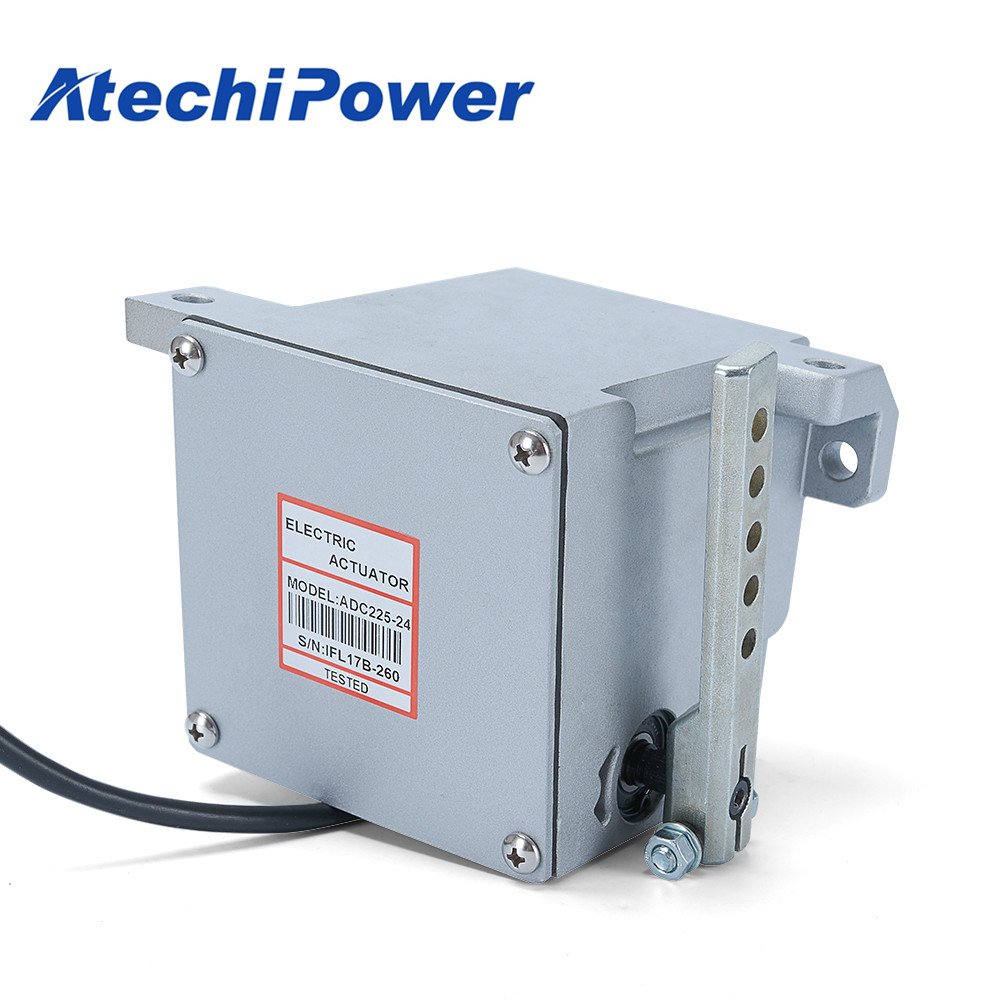

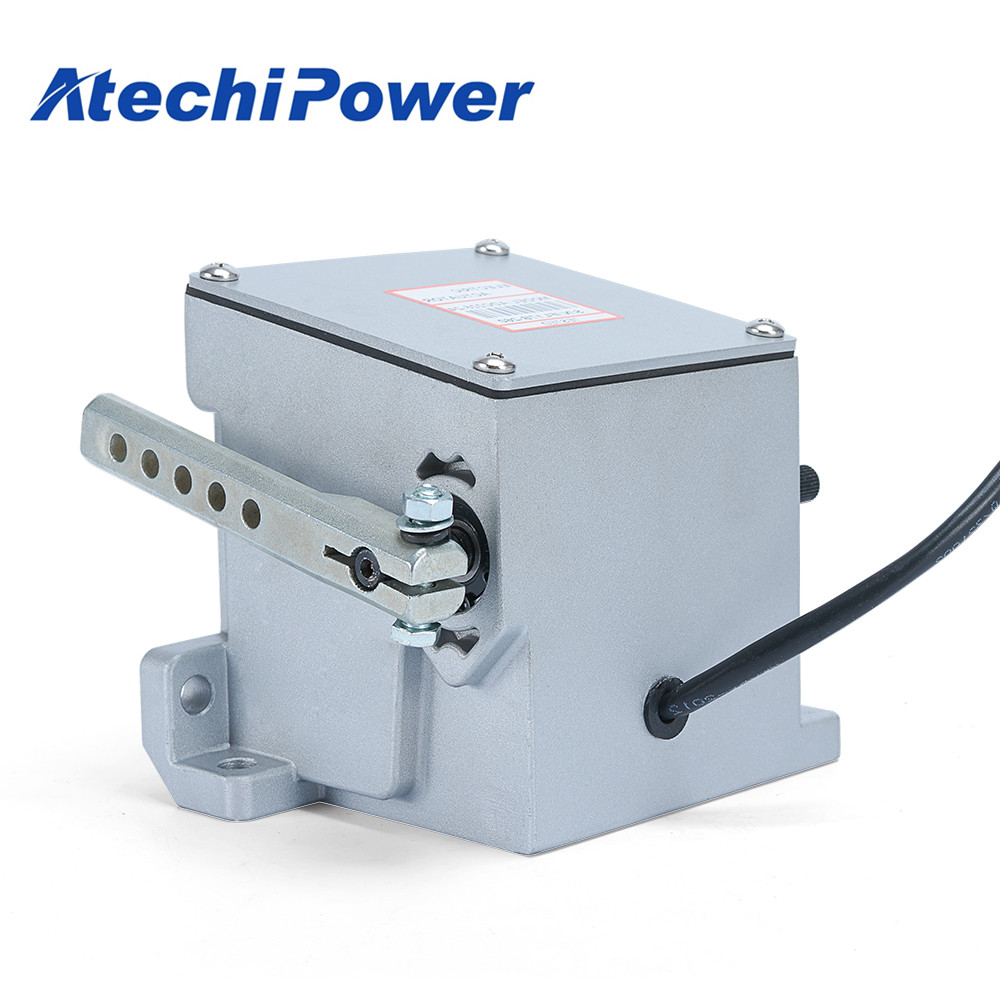

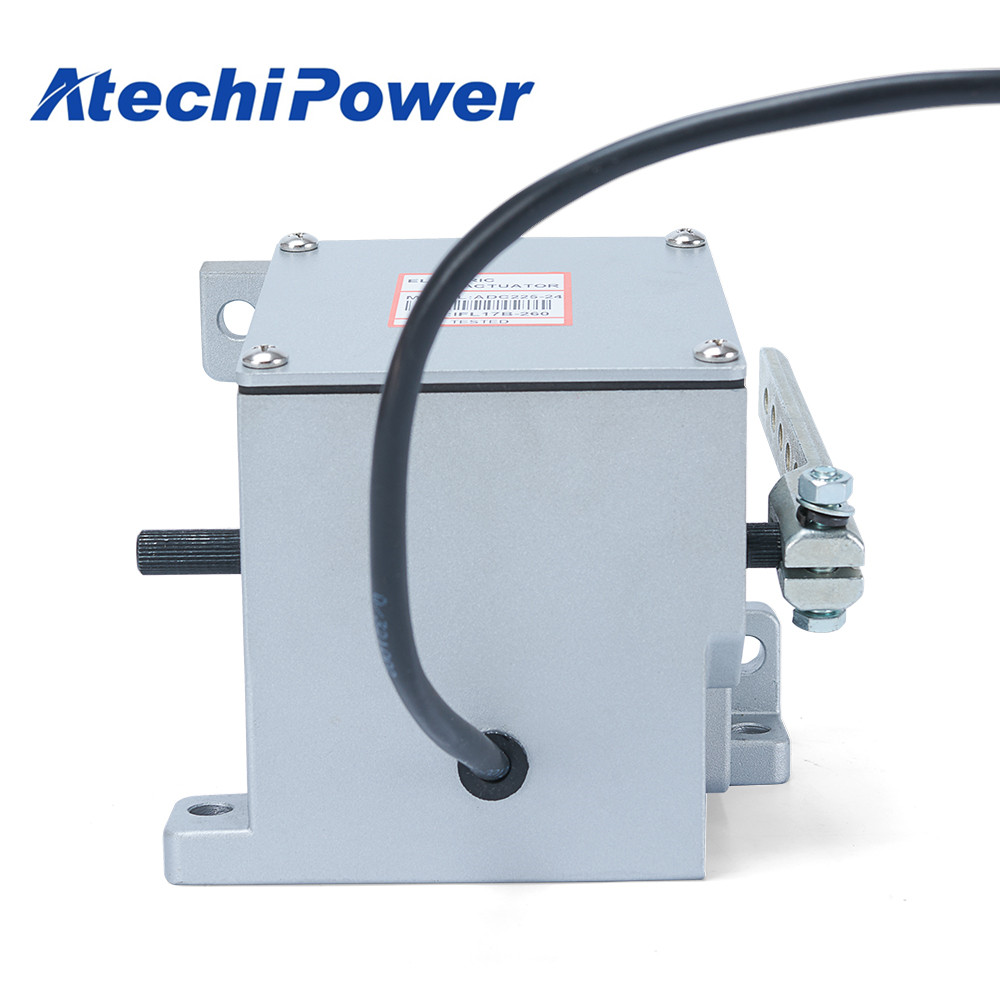

ACD225 12V/24V actuator

Brief introduction：

ACD175 12V/24V governor actuator for diesel generator 1.The 175 SERIES electric actuator is designed to mount directly on a Bosch "P" size fuel injection pump,...MORE >>

Classification：Actuator

Size：20X15X15 cm

Weight：3.5kg

Price：

Introduction

generator actuator ADC225-12/24v

1.External Actuator ADB225-24V
2.motor operated valve actuator
3.Actuator ADB225-12V
4.Genset Actuator ADB225-24V

Actuator ADB225-24V
Specifications

external actuator,
generator actuator
ADB225-24V,
ADB225-12V,
ADC225

Universal type for engines with 100 to 500kW rated power

ADB-225 ("MIL", amphenol connector, die cast housing, 12 and 24 volts)
ADD-225SC (2 pin mating packard connector included, 12 or 24 volts)
ADB-225F (includes position feedback sensorfor fuel control, 12 or 24 volts)

225 Series

2.2 lb-ft of torque, 25° rotation, < 45 msec. response

Low cost, versatile model

Suitable for multi-plunger fuel pumps and medium size carburetors

Various models offer a variety of connectors and wiring harnesses, including feedback sensor

Outstanding reliability and performance

ACB225	Multi VDC / MIL Connector
ADB225	24 VDC / MIL Connector / Diercast Housing
ADB225G	Multi VDC / MIL Connector/ With Lesser Spring Force
ADC225S	12 or 24 VDC / Commerical Connector/ Serrated Shaft
ADC225GS	12 or 24 VDC / Commerical Connector/Serrated Shaft / Lesser Rate Return Spring
ADC225KS	12 or 24 VDC / Commerical Connector/ Serrated Shaft / High Temperature Applications
ADD225S	12 or 24 VDC / Packard Connector / Serrated Shaft
ADD225SC	12 or 24 VDC / Packard Connector w Mating Connector / Serrated Shaft

We can supply the pollowing products:

external actuator,
generator actuator
ADC225-24V,
ADC225-12V,
ADB225-24

ADB225-12

Power Input	Operating Voltage	12, 24, or 32 VDC
	Normal operating Current	1.5 A at 24/32VDC
	Maximum Current-Continuously Rated	4A at 24V/ 32 VDC
Performance	Available Torque	Max 2.2 ib-ft (2.7Nm)
Performance	Maximum operating shaft Augular Travel	25± 1 degree CW/CCW
Environmental	Temperature Range	-65 to + 200°F(-54° to +95 °C)
	Relative Humidity	Up to 100%
	All Surface Finishes	Fungus Proof and Corrosion Resitant
Reliability	Vibration	Up to 20 G 100 50-500 Hz.
Reliability	Testing	100% Tested
Physical	Dimensions	See Diagram 1
	Weigh1	8.25 lbs.(3.75kg)
	Mounting	Any position, Vertical Preferred
Mating Hardware	Connector ACB 225/ADB 225	EC 1000/ MS3106R 14S-6S (6 pins)
	Connector ADC 225	Supplied with Actuator
	Lever ACB 225/ ADB 225/ADC225S	LE 1400-2
	Lever ADC225	LE 1500-2
	Rod End Bearings (to attach a 1/4- 28THD linkage rod to the lever)	BR 200(right hand) / BR201 (left hand)
	Wiring harness ADC225	Supplied with Actuator
	Wiring harness ACB225/ ADB225	Various Lengths availale from GAC
