Brief introduction：

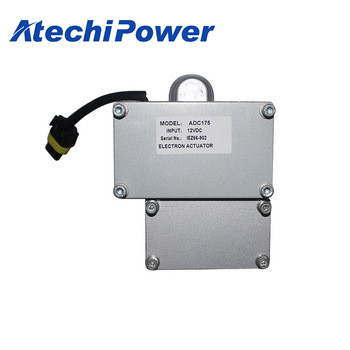

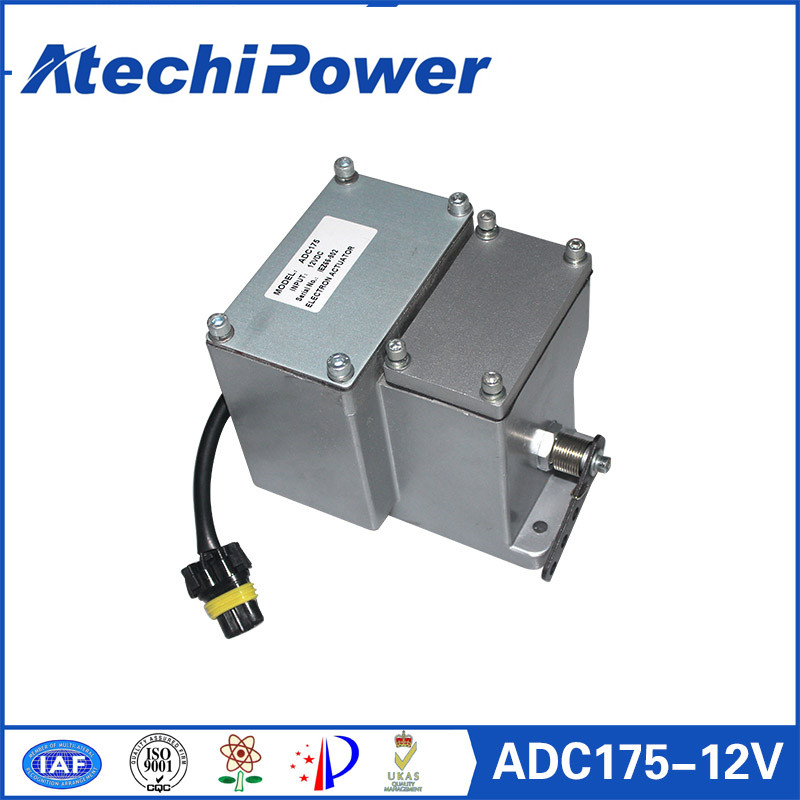

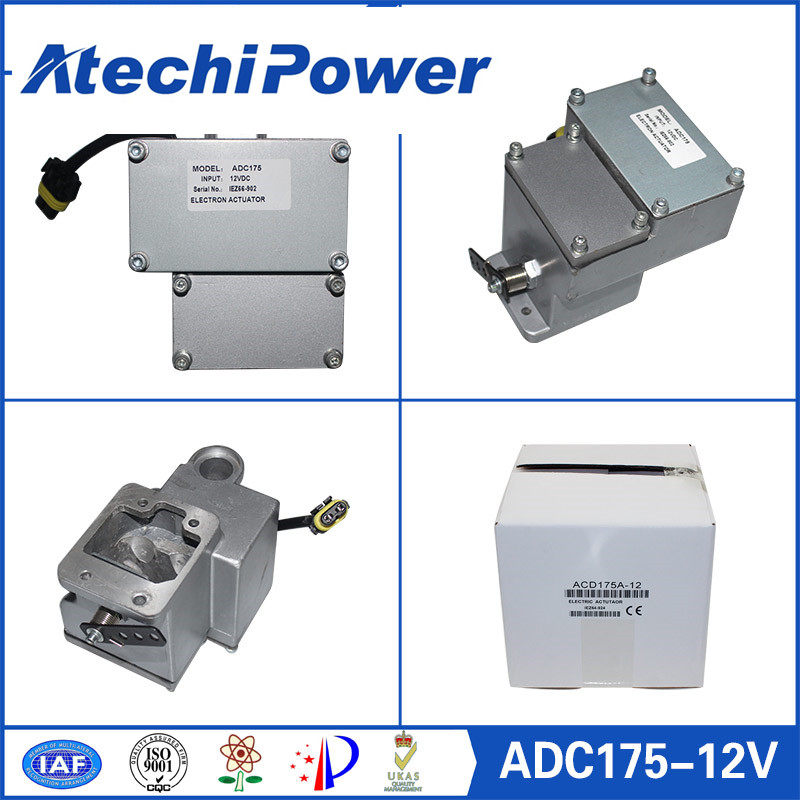

ACD175 12V/24V governor actuator for diesel generator 1.The 175 SERIES electric actuator is designed to mount directly on a Bosch "P" size fuel injection pump,...MORE >>
Classification：Actuator
Size：20X15X15 cm
Weight：3.5kg
Price：
Introduction
· Rotary output linear torque proportional servo
· Small, low cost, low friction model
· 1.0 lb-ft of torque, 25° rotation, < 32 msec. response
· Suitable for rotary or small inline fuel pumps of small carburetors
· Ideal for fuel systems on engines up to 150 HP
Technical Data:
| ADC120-12V | ||
| Power Input | Operating Voltage | 12, 24, or 32 VDC |
| Normal operating Current | 2A at 12VDC | |
| Maximum Current-Continuously Rated | 6A at 12V DC, | |
| Performance | Available Torque | Max 1.0 ib-ft (1.4Nm) |
| Maximum operating shaft Augular travel ACB/ACE | 20± 1 degree CW/CCW | |
| Maximum operating shaft Augular travel ADB/ADC | 25± 1 degree CW/CCW | |
| Environmental | Temperature Range | -65 to + 200°F(-54° to +95 °C) |
| Relative Humidity | Up to 100% | |
| All Surface Finishes | Fungus Proof and Corrosion Resitant | |
| Reliability | Vibration | up to 20 G 100 50-500 Hz. |
| Testing | 100% Tested | |
| physical | Dimensions | See Diagram 1 |
| Weigh1 | 4.50 lbs.(2.05kg) | |
| Mounting | Any position, Vertical Preferred | |
| Mating Hardware | Connector ACB /ACE/ADB 120 | EC 1000/ MS3106R 14S-6S (6 pins) |
| Connector ADC120 | Supplied with Actuator | |
| Lever ACB /ACE /ADB 120 | LE 1400-1 | |
| Lever ADC120 | LE 1500-2 | |
| Rod End Bearings (to attach a # 10-32 THD linkage rod to the lever) | BR100(right hand) / BR101 (left hand) | |
| wiring harness ADC 120 | 4 ft.hrness supplied with actuator, other Lengths available from | |
| ACE/ACB/ADB 120 | Various Lengths availale from |
